JVS-N617-UDL

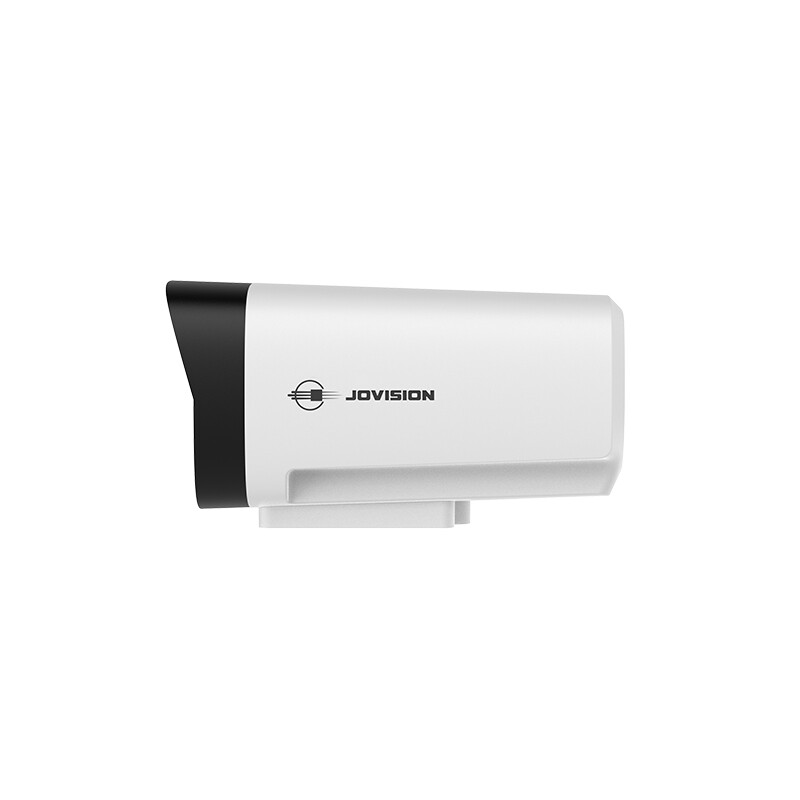

6.0MP Full-Color Video & Audio PoE Network Camera
Message
Features
Specification
Accessories
Download

Features

  • Full-Color with Dual Smart Illumination

  • Agi Sense Technology for accurate Humanoid Detection and Vehicle Detection

  • Built-in Mic and Speaker

  • AI-ISP for excellent video performance

  • Equipped With unique VQC (Video Quality Catalyst) Technology

  • Integrated with unique SAFE function

Specifications
Video
Image Sensor1/3" CMOS   Sensor
Max Resolution3200x1800
Effective Pixels6.0MP
Compression StandardH.264/H.265
Framerate25fps
Bitrate

Main Stream: 256Kbps ~ 10Mbps

Sub Stream: 68Kbps~3072Kbps

SNR (dB)49.3dB
Min. Illumination0Lux (light ON)
Interface TypeM12
Lens3.6mm
FOV3.6mm:H 81.5°, V 40.3°, D 93.8°
Function
Audio CodecG.711U/G.711A (default)
Exposure ControlAuto, HLC, BLC
White BalanceAuto
Gain ControlAuto
OSD Information SettingLarge font OSD, OSD flashing on alarm, OSD position settings
SNTPSupport
Schedule RebootSupport
Smart DefogSupport
Motion DetectionSupport Humanoid Detection   & Vehicle Detection
Image SettingSupport Saturation, Brightness, Contrast, Sharpness adjustment
Image StyleStandard, Soft,   Transparent
Day and Night FunctionAuto, Always Black & White, Always Color, Scheduled Color
Privacy MaskSupport up 8 areas
Night Vision   OptimizationSupport
WDRSupport
Screen SettingsScreen mirroring, Screen   flipping
IP AdaptationSupport automatic adaptation of IP address (Optional)
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and Video, Image, Alarm, Network management
Audio FunctionBuilt-in Mic x 2 and Speaker x 1
VQC TechnologySupport
SAFE FunctionSupport
Network
Ethernet10/100Mbps Ethernet
Stream2x Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP,   RTCP, SMTP, DHCP, DNS
ONVIFStandard ONVIF
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+,   Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Lights6 White LEDs + 6 IR LEDs
IR DistanceUp to 60 Meters
White Led DistanceUp to 50 Meters
Waterproof LevelIP67
Power SupplyDC12V or PoE (IEEE802.3af)
Power Consumption<10W
Working Temperature-30°C ~ 60°C
Working Humidity5% ~ 93% Rh
Color/MaterialBlack & White/Metal + Plastic

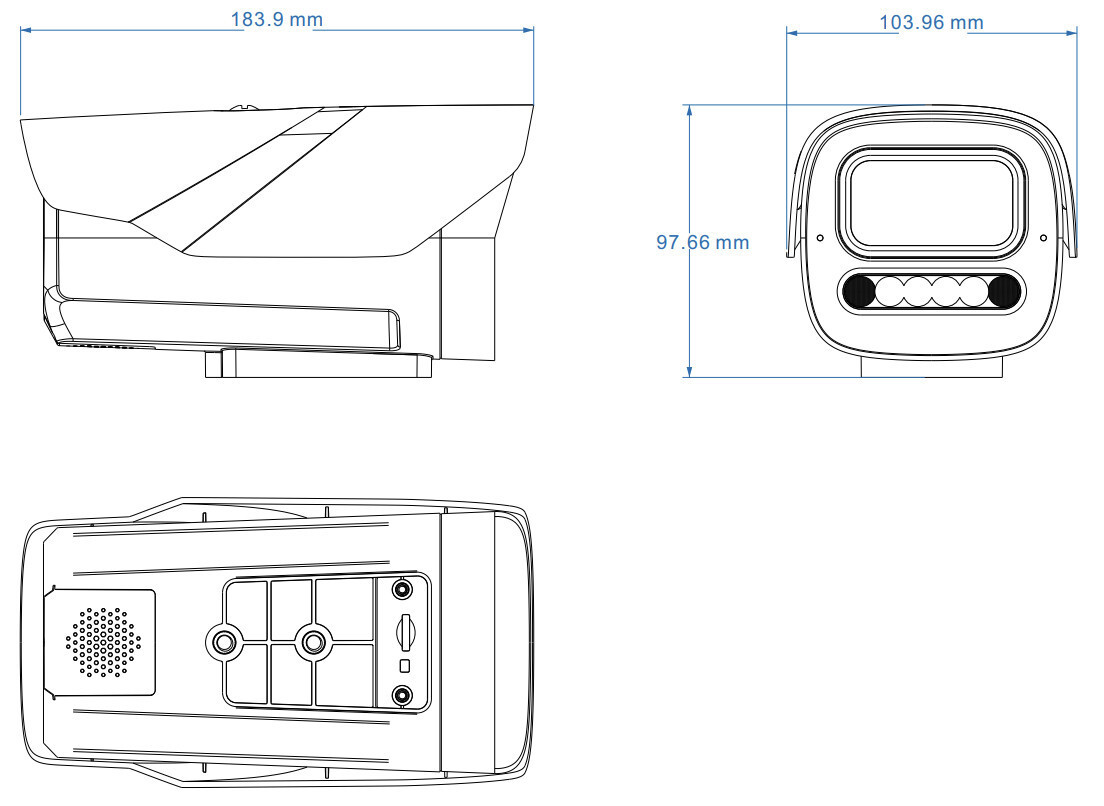

Dimensions (W x H x D)94.5x94x174.5mm
Weight400g
Installation MethodCeiling Mount, Wall Mount
