| Video |
| Image Sensor | 1/2.9" CMOS Sensor |
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 20fps |
| Bitrate | Main Stream: 128Kbps ~ 4Mbps Sub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 50dB |
| Min. Illumination | 0Lux (light ON) |
| Lens |
| Interface Type | M12 |
| Lens | 4mm, 6mm |
| FOV | 4mm:H 80.9°, V 44.06°, D 94.7° 6mm:H 53.8°, V 28.9°, D 61.4° |
| Function |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support (Humanoid) |
| Image Setting | Support Saturation, Brightness, Contrast adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto IR, smart dual light. |
| Privacy Mask | Support up 8 areas |
| Electronic Screen Setting | Support maximum and minimum exposure time setting |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic |
| Network |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, RTSP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General |

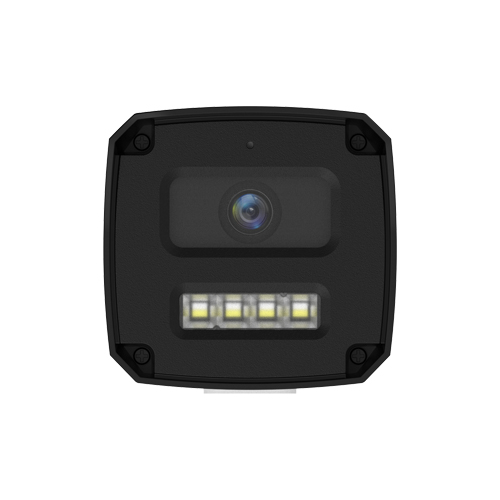

| Lights | 4 White LEDs + 4 IR LEDs |
| IR Distance | Up to 40 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V 2A or PoE |
| Power Consumption | <3W (During Day); <6W (At Night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | <93% Rh |
| Color/Material | Black and White/ Plastic + Metal |
| Dimensions (WxHxD) | 88x85x178mm |
| Weight | 240g |
| Installation Method | Wall or ceiling mount |
