Image Sensor

1/3" CMOS

Max Resolution

2560x1792

Effective Pixels

5.0MP

Compression Standard

H.264/H.265+

Framerate

30fps

Bitrate

Main Stream: 256Kbps ~ 4096Kbps

Sub Stream: 68Kbps~1024Kbps

Third Stream: 68Kbps~1028Kbps

SNR (dB)

≥50dB

Min. Illumination

0.0Lux (light ON)

Lens

Lens

Varifocal Lens, Motorized Lens, 2.7mm-13.5mm

Focal lens & FOV

2.7mm-13.5mm     Horizonal FOV: 101.4° to 26.9°

Vertical FOV: 53.6° to 15.2°           Diagonal FOV: 118.7° to 30.5°

Function

Exposure Control

Auto

White Balance

Auto

Gain Control

Auto

Digital 3D Noise Reduction

Support

OSD Information Setting

By default: The customized OSD supports a maximum of six lines, each line contains a maximum of 32 characters. One Chinese character is counted as two characters

SNTP

Support

Schedule Reboot

Support

Smart Motion Detection

Support (Human, Vehicle, Pet)

Image Setting

Support Saturation, Brightness, Contrast, Sharpness adjustment

Image Style

Standard, Soft, Transparent

Day and Night Function

Always Black & White

Privacy Mask

Support up 8 areas

Night Vision Optimization

Support

WDR

120dB

Screen Settings

Screen mirroring, Screen flipping

IP Adaptation

Support automatic adaptation of IP address (Optional)

Intelligent Analysis

Support Leave Detection, Road Occupation Detection

Alarm Method

Email Alarm, Client Alarm

Remote Operation

System, Video, Image, Alarm, Network management, Intelligent Analysis

Network

Ethernet

10/100Mbps Ethernet

Stream

3x Streams

Network Protocols

HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS

Access Protocol

Standard ONVIF, Public Cloud

Network Transmission

CloudSEE 2.0

Fusion Cloud Platform

Support

Browser

IE8+, Chrome18+, Firefox5.0+, Safari5.02+

User

Up to 13 Users

App

Support iOS/Android

General

Lights

4 IR LEDs

IR Distance

Up to 80 Meters

Waterproof Level

IP68

Power Supply

AC 220V

Power Consumption

<7.5W

Working Temperature

–40°c～+60°C

Working Humidity

≤95%  （+25°c）

Color/Material

Stainless steel 304, Corrosion-proof for marine area

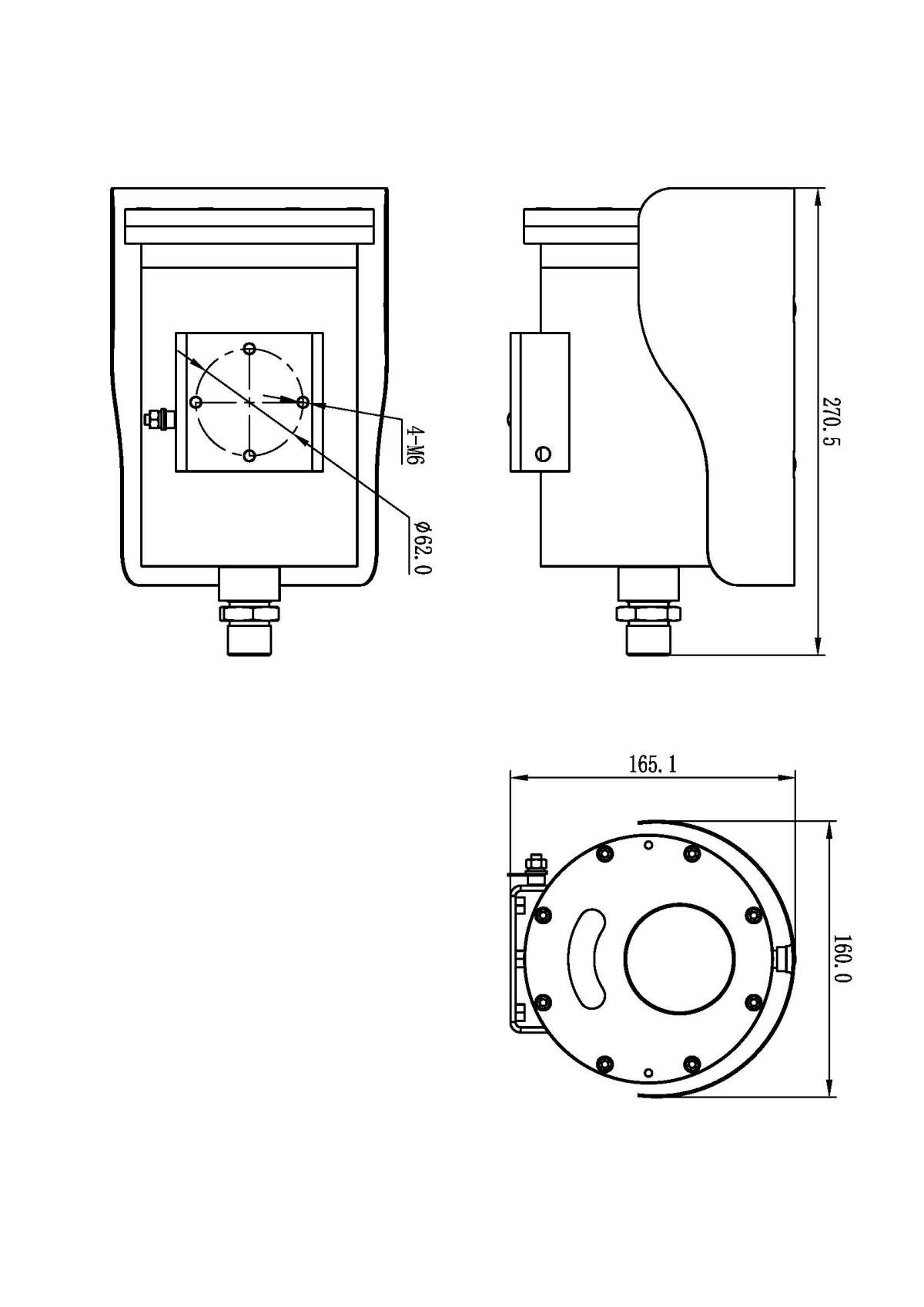

Dimensions (WxHxD)

165x160x270mm

Weight

6.5Kg

Installation Method

Wall
