JVS-A530-YWC
5MP Dome HD Camera
Message
Features
Specification
Accessories
Download

Key Features

• 1/2.8" 5.0MP CMOS Sensor

• All-in-one coaxial HD output, clear and delicate images

• Illuminance, 0.05Lux@ (F2.0, AGC ON), 0LUX with IR

• Support OSD menu control, suitable for user-defined settings

• Adaptive Digital Noise Reduction, 2D-DNR

• Support coaxial control (UTC)

• Video 4KV lightning protection. Large capacitor power supply design

Specifications

ModelJVS-A530-YWC
Camera
Image Sensor1/2.8" CMOS Sensor
Image Resolution2560x1944
Effective Pixels5.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥37dB
Min. Illumination0.05Lux@ (F2.0, AGC ON), 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 4.0mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED14µ x 15Pcs
Infrared Distance30m.
IR Cut FilterYes
IR StatusUnder 0.1 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageOptional
White BalanceAuto
Gain ControlAuto
Noise Reduction2D DNR
Picture AdjustmentN/A
WDRYes
OSD SupportOptional
UTCSupport
StarlightSupport
General
HousingPlastic
BracketYes
Operation Temperature-10°C ~ 50°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 230mA
Dimension100x100x85mm
Weight≤190g

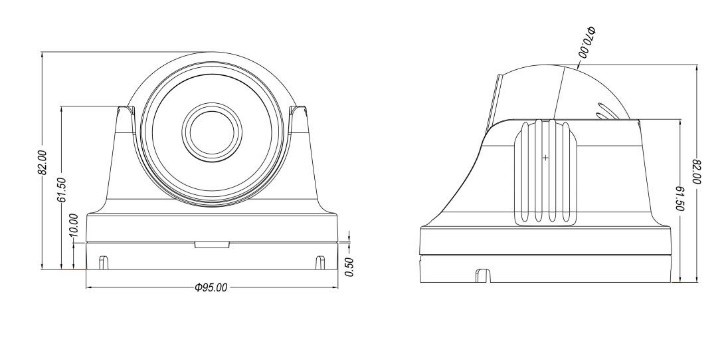

Dimension(mm)
