PRODUCTS

‹

›

‹

  • JVS-A815-YWC

›

JVS-A815-YWC
2MP Bullet HD Camera
Message
Features
Specification
Accessories
Download

Key Features

• 1/3" 2.0MP CMOS Sensor

• Full HD resolution 1920 x 1080

• 15Pcs IR LEDs, IR Range 20m.

• Support TVI, AHD, CVI, CVBS output

• UTC Coaxial Control

• Easy installation, HD video transfer over coaxial cable

• Ingress Protection IP66

Specifications

ModelJVS-A815-YWC
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution1920x1080
Effective Pixels2.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥50dB
Min. Illumination0.05Lux@ (F2.0, AGC ON), 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 4mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED10µ x 15 Pcs.
Infrared Distance20m.
IR Cut FilterYes
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageSupport
White BalanceAuto
Gain ControlAuto
Noise ReductionN/A
Picture AdjustmentN/A
WDRN/A
OSD SupportNot Support
UTCSupport
General
HousingPlastic
BracketYes
Operation Temperature-20°C ~60°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 250mA
Dimension180x75x85mm
Weight≤230g

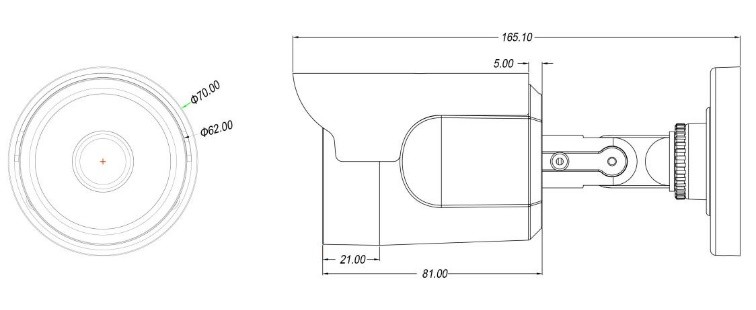

Dimension(mm)
