JVS-FR-T8

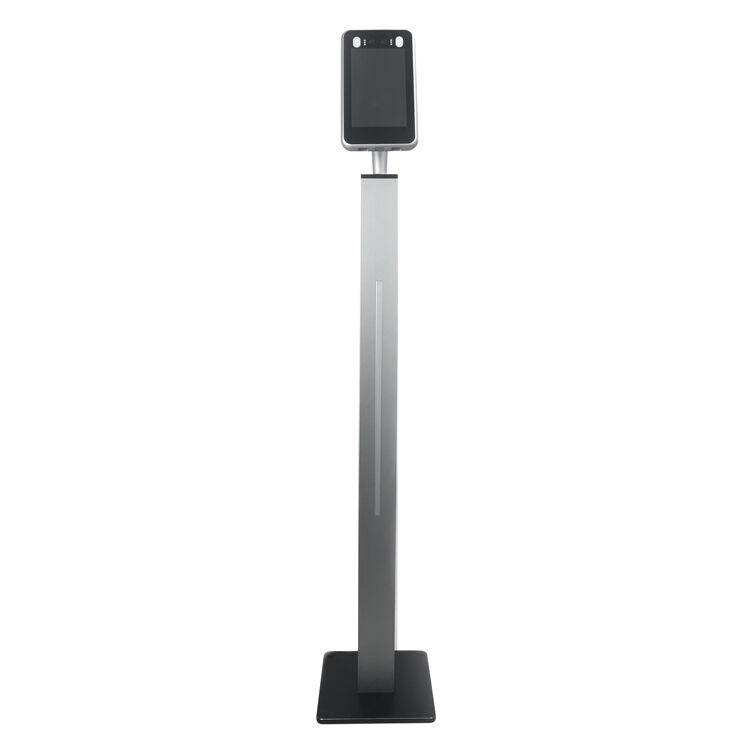

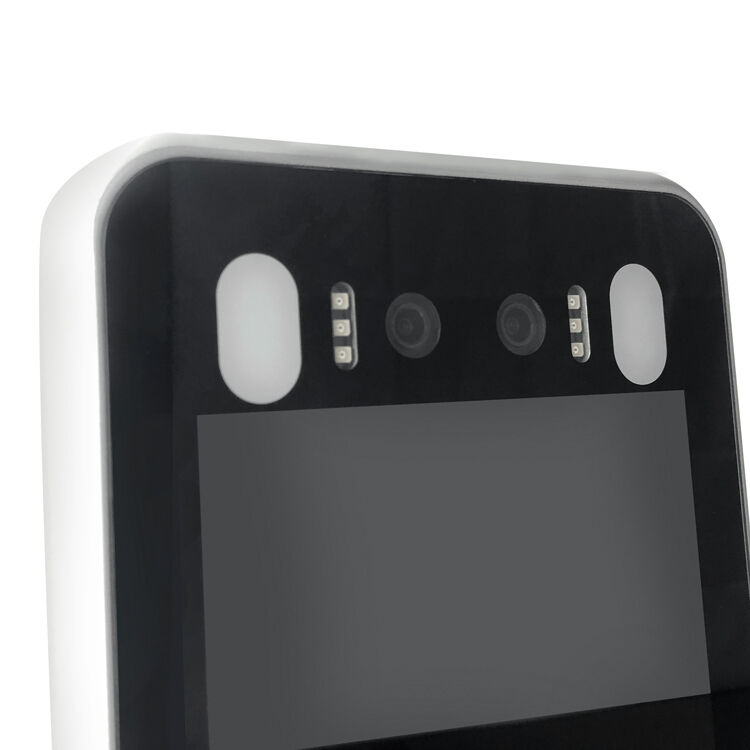

Facial Recognition Terminal
Message
Features
Specification
Accessories
Download

Key Features

• Face Recognition Access Control Machine

• Unique Facial Recognition Algorithm.

• Facial Recognition time ＜ 1 Second

• Face Database ≥20 000 Faces

• 8-inch IPS HD Display

• Used for Contactless Attendance and Face Recognition Access Control


Specifications

ModelJVS-FR-T8
Facial Recognition
Recognition Accuracy≥99.7%
Recognition Time＜1 Second
Face Database≥20 000 Faces
Recognition Distance&HeightDistance: 0.5~2 m  Height:1.2~2.2m，Adjustable
Recognized Face Angle≥30°
Lens Angle2.8mm,H 117.8°, V 64.1°, D: 141.9°
Black & White ListSupport
Interface
Ethernet10M/100M Ethernet, RJ45 Port
Wiegand Interface1 Pcs for Output
RS232 & RS485Support
Alarm OutputSupport 2*Alarm Output
Micro-SD CardBuilt-in 32GB;Support, upto 128GB
Audio Input&OutputSupport, with Built-in Speaker
General
Working Temperature15℃ - 35℃
Working HumidityRH 5～90%
Power SupplyDC12V 3.33A
Power Consumption≤20W
Dimensions273mm*144mm*25mm
Diameter for Install on Gate34mm
Screen Size8-inch, Full-view IPS LCD screen
Weights2.4KG(Without Stand)
InstallationWall Mounting, Gate Installation
