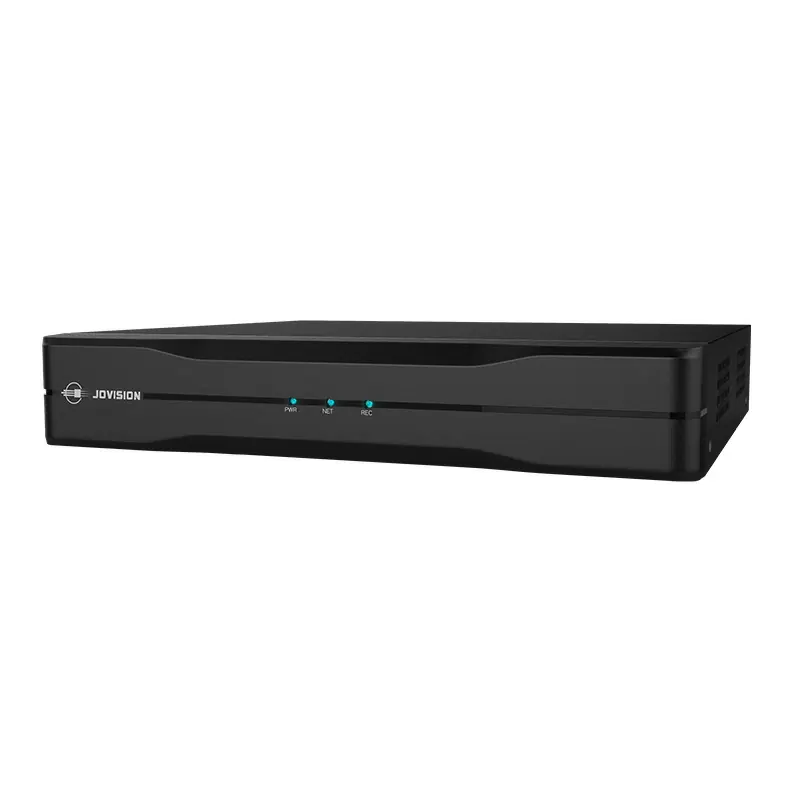

JVS-ND6616-HD
16CH H.265 NVR
Message
Features
Specification
Accessories
Download

Key Features

• Adopt the new Vstar GUI, easy to operate and run smoothly

• Support intelligent coding VSMart, greatly reducing storage space

• Improved compatibility for HDD. Support max. of 10TB

• Support Intelligent Detection and Human Detection

Specifications
ModelJVS-ND6616-HD
Video & Audio
IP Camera Input16 Channel
Audio Input/ Output1 Channel RCA Output,16 Channel Audio output through HDMI
Display
Interface1 HDMI, 1 VGA
ResolutionHDMI: 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Max Decoding16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-Screen Display4/ 5/ 6/ 7/ 8/ 9/ 10/ 11/ 12/ 13/ 14/ 15/ 16
OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

 Volume, Channel Number

Recording
CompressionH.265/H.264
Resolution16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record ModeManual, Schedule, MD
Video Detection & Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback & Backup
Sync Playback1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p
Search ModeChannel Number / Recording Type / Date
Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

 Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup ModeFAT32 USB Device/ Network

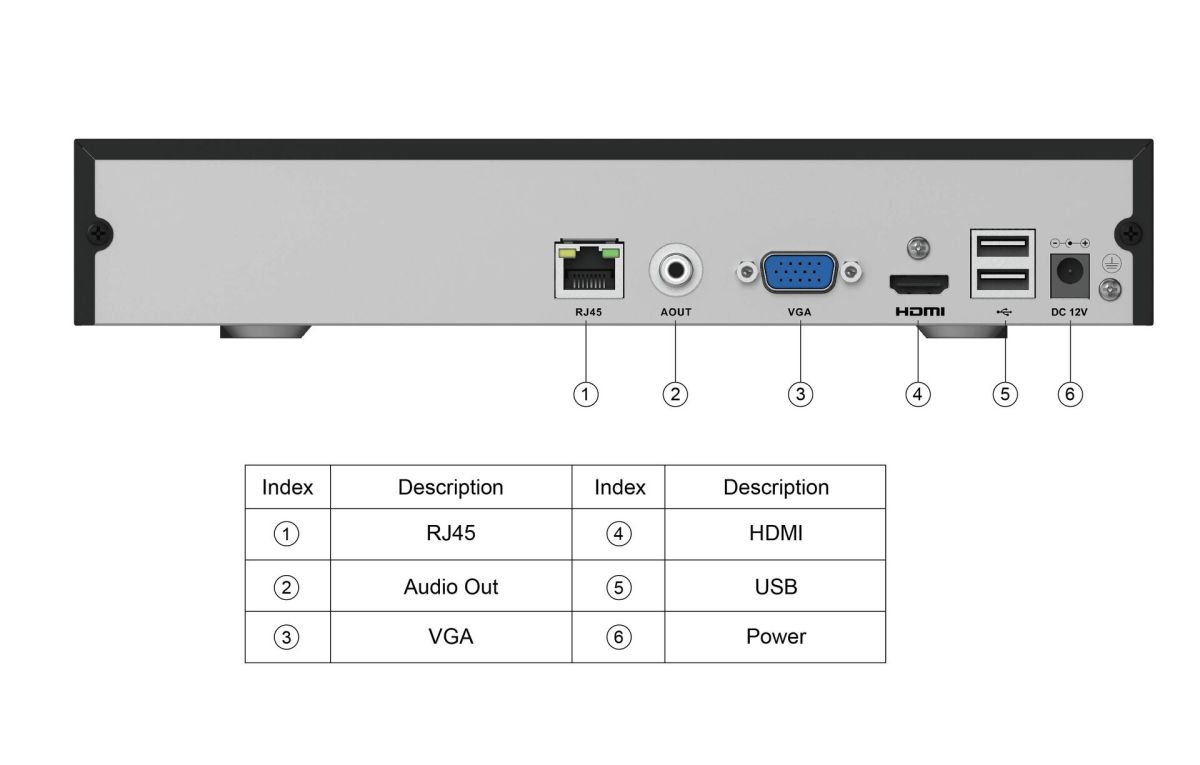

Network & Interfaces
Interface1 RJ45 Port (10/100Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart PhoneSupport iOS, Android App
InteroperabilityONVIF 2.4
Storage
SATA1 SATA Interfaces
CapacityUp to 10TB
USB2x USB
General
Power SupplyDC 12V
Consumption≤10W (Without HDD)
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions260x48x227mm
Weight≤1.0kg (Without HDD)
