  • JVS-ND7008-PD01

›

JVS-ND7008-PD01
8CH PoE H.265 NVR
Message
Features
Specification
Accessories
Download

Key Features

• Adopt the new VStar GUI, easy to operate and run smoothly

• Support intelligent coding VSmart, greatly reducing storage space

• Improved compatibility for HDD. Support max. of 8TB

• Support Intelligent Detection and Human Detection

• Support 8 Channel IEEE802.3af PoE

Specifications
ModelJVS-ND7008-PD01
Video and Audio
IP Camera Input8 Channel
Audio Input/ Output1 Channel 3.8mm Audio Output, 8 Channel Audio output through HDMI
Display
Interface1 HDMI, 1 VGA
Resolution

HDMI: 3840x2160, 1920x1080, 2560x1440, 1440x900, 1280x1024, 1280x720, 1024x768

VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Max Decoding8CH 5.0MP/4.0MP/1080p/960p/720p @25fps
Multi-screen Display1/ 4/ 5/ 6/ 7/ 8/ 9
OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

Volume, Channel Number

Recording
CompressionH.265/H.264
Resolution8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record ModeManual, Schedule, Motion Detection
Video Detection and Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback & Backup
Sync Playback2CH 5.0MP/ 3CH 4.0MP/ 4CH 3.0MP
Search ModeTime /Date, Schedule, Motion Detection
Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup ModeFAT32 USB Device/ Network

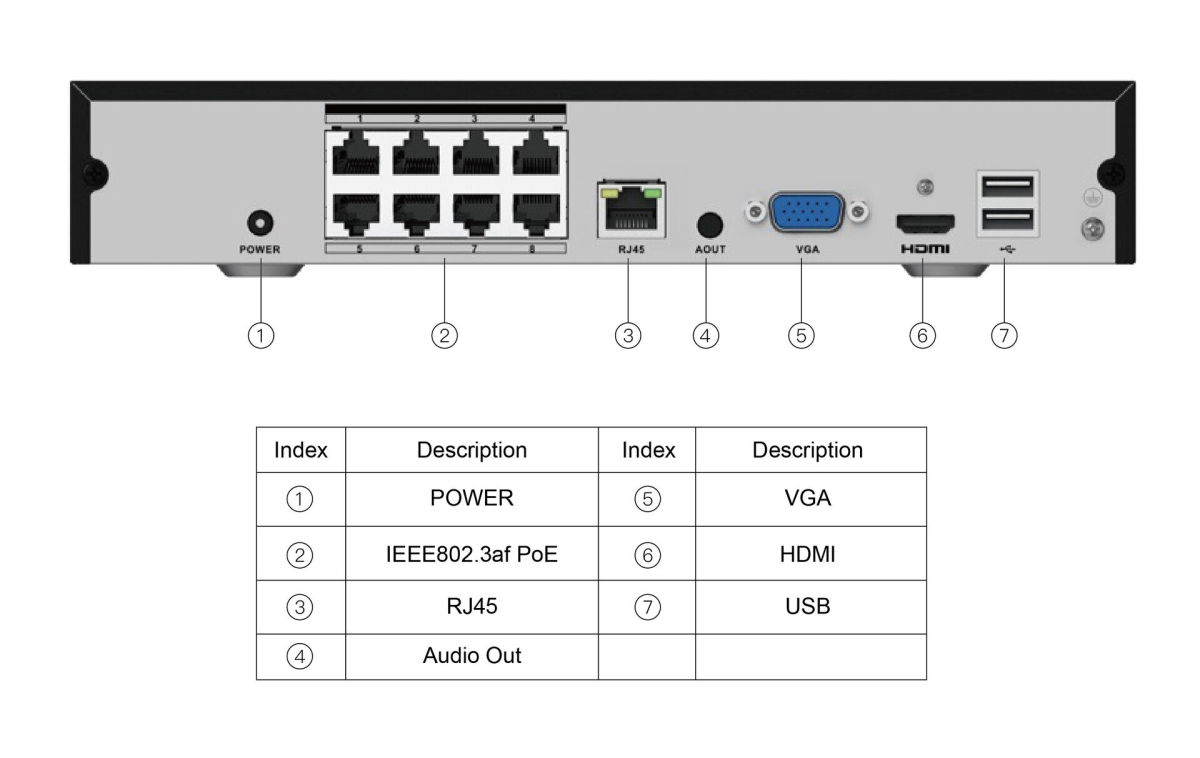

Network & Interfaces
Interface1 RJ45 Port (10/100/1000Mbps)
PoE Interface8 Port 100Mbps IEEE802.3af PoE
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart PhoneSupport iOS, Android App
InteroperabilityONVIF 2.4
Storage
SATASingle SATA interface
CapacityUp to 8TB
USB2x USB
General
Power Supply48V DC
Consumption≤15W (Without HDD)
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions360x264x45mm
Weight≤2Kg (Without HDD)
