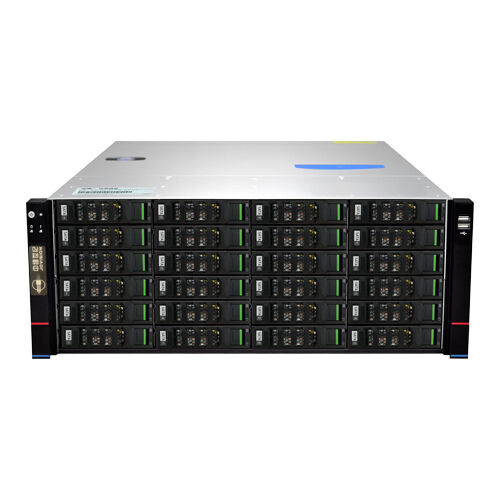

JVS-VS6824-S
24 HDD Video Storage Server
Message
Features
Specification
Accessories
Download

Features

High Performance

  • High performance Intel X86 multi-core processor.

  • Supports DDR4 memory with 8GB as standard; maximum support 32G.

  • Built-in 500G SSD, support 24xHDD (Upto 20TB Each)

  • Supports media forwarding + video storage shared 800M (or used in standalone scenarios)

High Stability

  • Supports RAID-5 to ensure data stability

High Reliability

  • Adopts intelligent heat dissipation system to effectively reduce noise pollution and create a constant temperature space inside the box; fully shielded against electromagnetic radiation, anti-interference, anti-static (EMI) design.

  • Supports docking to various mainstream vendor management platforms through standard protocols such as IPSAN/NFS.

  • Support streaming video, alarm video storage, support disk failure alarm, automatic disk rejection, support automatic reconnection of video disconnection, etc.

Specifications
Server
OSLinux
ProcessorIntel® X86 High-Performance Multi-Core Processor
Network2x10/100/1000Mbps Adaptive Network Ports
Meory8G DDR4, MAX support 32G
OS DISK500G, Support Power Loss Protection
Network ProtocolRTMP, HLS, TCP/IP, Telnet

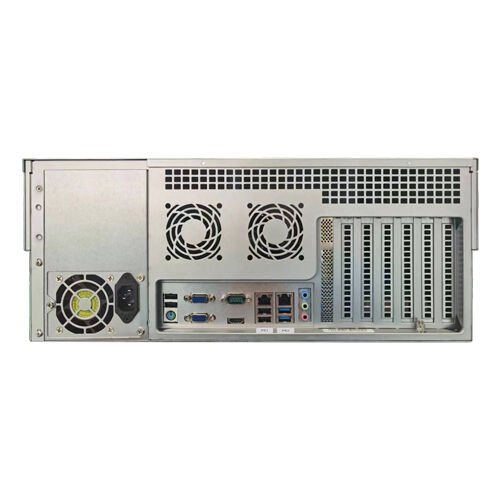

External Interfaces
COM1x COM Interface
Video Output2x VGA Interface, 1x HDMI Interface
PS/21x PS/2 Port
USB2x USB3.0 and 6x USB2.0
Audio1x Audio Connector
Ethernet2x RJ45 Port
System
Storage modeStandard Storage Server Mode: Generic network storage services, such as IPSAN/NFS, that can be used by other platforms (Hik, Dahua, UNV, etc.).
Fusion Cloud Storage Server Mode: can be used in combination with Fusion cloud platform servers as a slave of the Univision cloud (only media forwarding and storage services are provided).
Storage CapacitySupport 24xHDD (Upto 10TB Each)Support media forwarding + video storage sharing 800M (can also be used independently in a single scene)
General
Power100~240V AC ，800W
Temperature & Humidity

Working Temperature: -20°C ~ 75°C

Working Humidity: RH 10%~ 90% (non-Condensing)

Storage Temperature: -20°C ~ 75°C

Storage Humidity: RH 5%~ 95% (non-Condensing)

Dimension670mm×430mm×176mm (4U)
