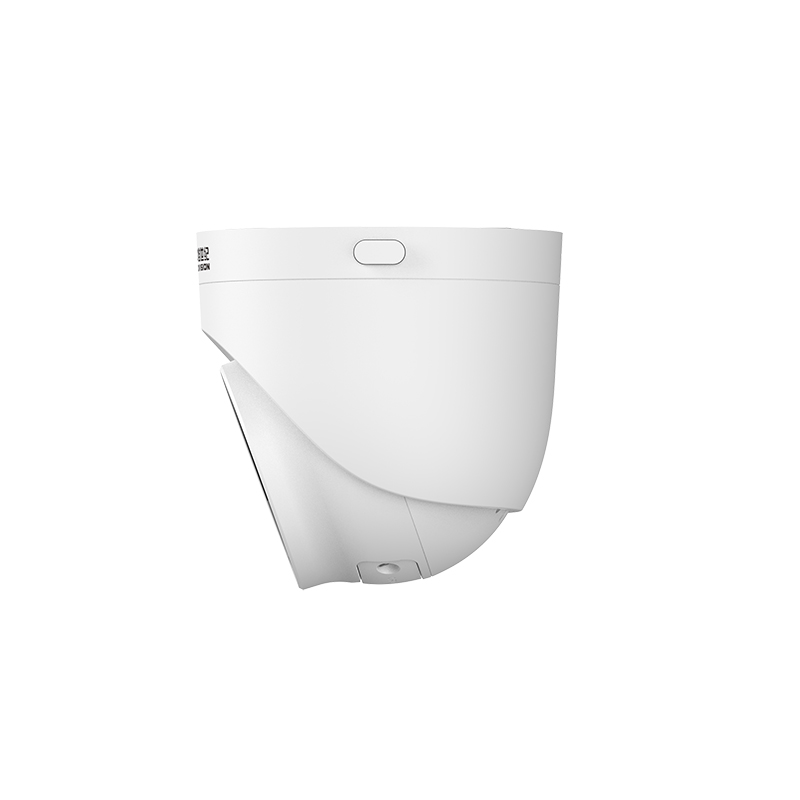

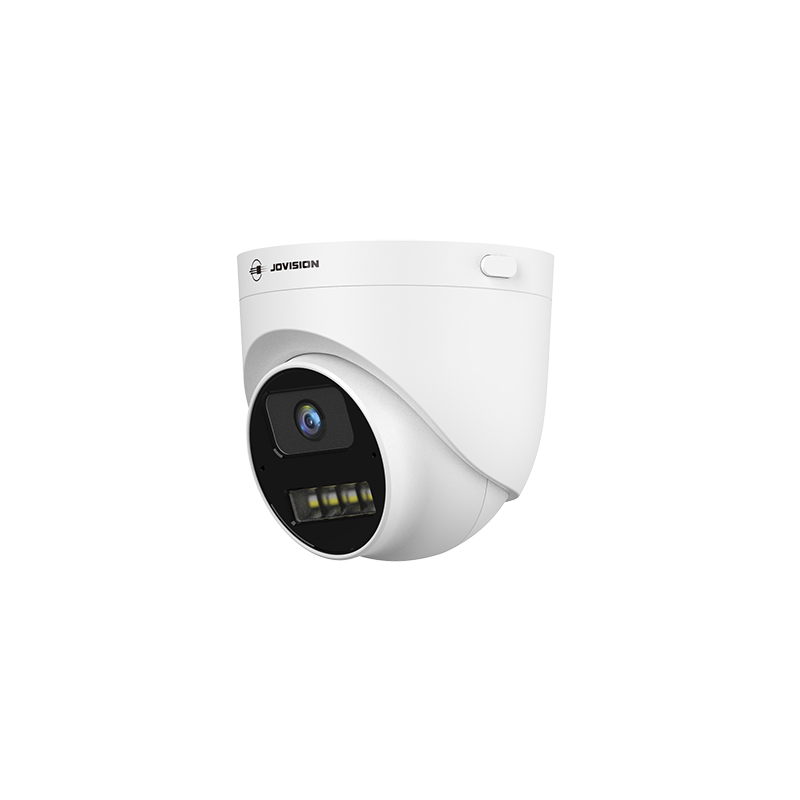

4.0MP Passenger Flow Statistics PoE Network Camera
JVS-N437-PCL
Message
Features
Specification
Download

Features



  • Support Passenger Flow Statistics

  • Built-in Mic and Speaker

  • Equipped With unique VQC (Video Quality Catalyst) Technology

  • Support SD Card(512G)

  • Support IP67


Specifications

Video

Image Sensor

1/3" CMOS Sensor

Max Resolution

2560x1440

Effective Pixels

4.0MP

Compression Standard

H.264/H.265

Framerate

25fps

Bitrate

Main Stream: 256Kbps ~ 8192Kbps

Sub Stream: 68Kbps~1024Kbps

SNR (dB)

50dB

Min. Illumination

0Lux (light ON)

Interface Type

M12

Lens

2.8mm

FOV

2.8mm:H 98.4°, V 53.4°, D 114.1°

Function

Audio Codec

G.711U/G.711A (default)

Exposure Control

Auto, HLC, BLC

White Balance

Auto

Gain Control

Auto

OSD Information Setting

Large font OSD, OSD flashing on alarm, OSD position settings

SNTP

Support

Schedule Reboot

Support

Smart Defog

Support

Motion Detection

Support Humanoid Detection & Vehicle Detection

Image Setting

Support Saturation, Brightness, Contrast, Sharpness adjustment

Image Style

Standard, Soft, Transparent

Day and Night Function

Auto, Always Black & White, Always Color, Scheduled Color

Privacy Mask

Support up 8 areas

Night Vision Optimization

Support

WDR

Support

Intelligent Analysis

Support Passenger Flow Statistics, Region Intrusion Detection, Line Crossing Detection

Screen Settings

Screen mirroring, Screen flipping

IP Adaptation

Support automatic adaptation of IP address (Optional)

Alarm Method

Email Alarm, Client Alarm

Remote Operation

System, Audio and Video, Image, Alarm, Network management

VQC Technology

Support

SD Card

Support(512G)

Network

Ethernet

10/100Mbps Ethernet

Stream

2x Streams

Network Protocols

HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS

ONVIF

Standard ONVIF

Network Transmission

CloudSEE 3.0

Browser

IE8+, Chrome18+, Firefox5.0+, Safari5.02+

User

Up to 13 Users

App

Support iOS/Android

General

Lights

4 White LEDs + 4 IR LEDs

IR Distance

Up to 30 Meters

White Led Distance

Up to 20 Meters

Waterproof Level

IP67

Power Supply

DC12V or PoE (IEEE802.3af)

Power Consumption

<3W (During Day); <9W (At Night)

Working Temperature

-30℃~60℃(-22℉~140℉)

Working Humidity

5% ~ 93% Rh

Color/Material

Black & White/Metal ball+ Plastic

Dimensions (W x H x D)

108x104x106mm

Weight

370g

Installation Method

Ceiling Mount

Product Advantages
