Key Features
• 6th Gen Uncooled focal Plane Array VOx Detector
• 78x Zoom
• 31 ~ 155mm Thermal Lens
• 13Km Distance Detection
• Support 360° Pan and Tilt
• Support Intelligent Functions
• Support Hot-spot Detection
• Optional Laser Illuminator
• Anti-salt spraying support
Specifications
Model | JVS-DL68-Z78 |
Thermal Imaging | |
Detector | 6th Gen Uncooled focal Plane Array VOx Detector |
Detector Array | 640 x 512 |
Field of View | 20° x 15° ~ 4° x 3° |
Wavelength | 8 ~ 14μm |
NETD | 40mK (@25°C F1.0) |
Lens | 31 ~ 155mm Thermal Lens |

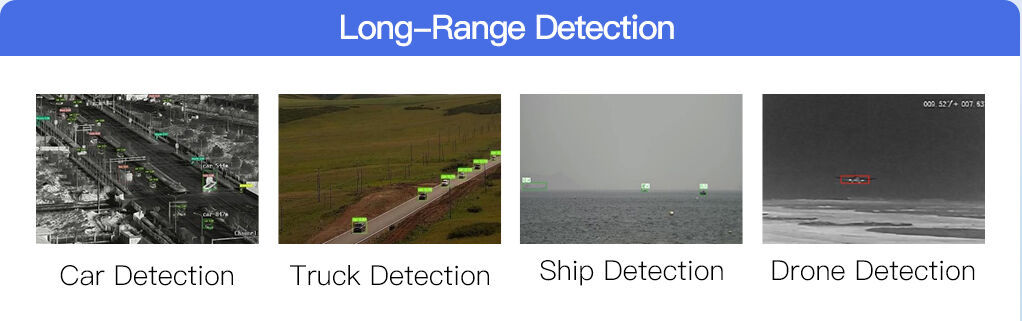

Detection Distance | 13,000m to the car, 4,800m to the person.The detection distance of 2X2 meters fire source can reach 10,000m (3X3 pixels) |
Recognition Distance | 3,400m to the car, 1,300m to the person |
Lens Control | Digital Zoom, Manual/ Auto Focus, 3A adaptive active focus algorithm, supports multiple trigger modes, precise and high speed. 3CAM method and AS+DOE optical-mechanical structure, high infrared transmittance, no virtual focus during zooming process, the axis is too small. |
Image Enhancement: | SDE digital image enhancement technology, improve the details of the image, support 255-level thermal image enhancement adjustment |
Pseudo-color Polarity | 16 Pseudo-color images, Hot black/ Hot white two polarities |
Image Parameters | AGC automatic gain control, brightness, contrast adjustment |
Digital Zoom | 1.0~8.0x continuous zoom (Step size 0.1), support optical electronic relay zoom, support global eagle eye diagram |
Ranging Ruler | Support |
Dead Pixel Correction | Support |
Image Correction | Support manual correction, Background correction, Automatic correction time interval |
Bright Light Protection: | Supports sun damage |
Visible Imaging | |
Sensor Type | Back-illuminated ultra-low illumination starlight CMOS |
Minimum Illumination | Color: 0.0005Lux;Black & White: 0.0001Lux; 0Lux (IRON) |
Lens | 11 ~ 860mm HD motorized zoom;Manual/auto focus, 3A adaptive active focus algorithm, supports multiple trigger modes, accurate and high-speed |
Image Processing | Supports White balance, Electronic shutter, Frame accumulation, BLC, HLC, 2D/3D DNR, Electronic image stabilization, WDR, Heat wave drift suppression |
Day and Night | 0.4 ~ 0.75μm visible light wide spectral window and 0.8 ~ 0.95μm near-infrared spectral window. Day and night independent double clear light window, improve the signal-to-noise ratio of imaging light and stray light |
Defog | Support digital defog, Optical defog |
Laser Light Source (Optional) | |
Technology | Patented technology of the new infrared GHT-III HD flood light super- homogenization light source. No speckle particles and the brightness balance of all focal segments is > 92%. |
Irradiation Distance | 3,000 meters |
Wavelength | 810nm military grade infrared laser |
Illumination Angle | 0.5° ~ 20° DSS digital stepping illumination angle control technology |
Laser Safety | Adopt ZQB safety laser beam processing patented technology, in line with international IEC 60825 safety standards |
Audio & Video | |
Thermal Image Resolution | 1920x1080; 1280x1024; 1280x960; 1024x768; 1280x720; 704x576; 640x512; 640x480; 400x300; 384x288; 352x240 |
Visible Light Resolution | 2592x1520; 2560x1440; 1920x1080; 1280x1024; 1280x960; 1024x768; 1280x720; 704x576; 640x512; 640x480; 352x288; 352x240 |
Video Encoding | H.265/H.264/MJPEG, Support multi-stream |
Video Bitrate | 32Kbps ~ 16Mbps |
Audio Codec | G.711A / G.711U/ G726 |
Image Flip | Left/ Right/ Up/ Down/ Diagonal |
OSD Settings | Support OSD display settings of channel name, time, PTZ orientation, field of view angle, focal length, and support preset name setting. |
Hotspot/ Smoke Detection Alarm | |
Alarm Threshold | 255 Levels |
Target Size | Support range adjust and automatically identify targets of different sizes |
Number of Alarm Targets | 1 ~ 16 |
Alarm Mode | Video overlay alarm box + Data return (Or switch value) multiple alarm modes. The alarm is intuitive and easy to read |
Front-end Algorithm | Optimized front-end fast processing algorithm, based on each frame analysis of raw heat map data. Alarm response 0.1Sec. No delay, No information loss |
Other Alarm | Support visible light fireworks detection alarm |
Smart Function | |
Intelligent Analysis | Support Intrusion detection, Cross-border detection, Entry/exit area detection, Motion detection, Loitering detection, People gathering, Fast movement, Target tracking, Item leftover, Item retrieval. Human/Vehicle target detection, Face detection and supports 16 regional settings. Supports intrusion detection, human and vehicle screening and filtering functions. Supports target temperature screening and filtering functions |
Automatic Tracking | Support single scene tracking / Multi scene tracking / Panorama tracking / Alarm linkage tracking |
Intelligent Information Fusion | Support 512 AR intelligent information fusion, Support fire point, Intelligent analysis video identification information function, Support azimuth angle, Field angle, Focal length, Multiple information fusion |
Image Fusion | Support 18 dual-light fusion modes, Support picture-in-picture function |
Alarm Management | Support alarm snapshot upload |
Protecting Mask | |
Material | Precision cast aluminum alloy shell, stainless steel fixings, strong wind resistance |
Knot Structure | Integrated multi-window design. Support for wipers (Optional plug-in small spray device, Self-storage, no damage to freezing, does not affect the function of the host) |
Window Glass | 4mm microcrystalline infrared high-efficiency anti-reflection HLIN optical glass, transmittance>98% |
Surface Spraying | PTA three-proof coating, Anti-seawater corrosion |
Temperature Control | The overall use of thermal balance design + wide temperature electronic and optoelectronic devices, built-in heating, heat dissipation and other temperature control components, can work in low and high temperature environments |
Physical Interface | Aviation waterproof plug |
PTZ | |
Range | Pan 0°~360°, Tilt -45° ~ +45° |
Rotational Speed | Horizontal 0.01°/Sec ~ 30°/Sec, Vertical 0.01°/S ~ 15°/Sec, Support lens focal length speed adaptive function |
Accuracy | ±0.1° |
Preset Cruise | 3000 presets, support 16 cruise routes, each can support 256 presets |
Watch | Preset position/pattern scan/cruise scan/vertical scan/frame scan/panorama scan /apple peel scan/horizontal fan scan line scan |
Zoom | Support 3D frame selection zoom |
Memory | Support (Can restore the position before power-off, preset position status, cruise status, line scan status) |
Orientation | Support angle query/real-time return, positioning; Support lens field of view return and positioning |
Zero-point Correction | Support the north zero-point remote correction function |
Network | |
Interface | 1x RJ 45, 10/100 Base-T adaptive |
Protocols | HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP, ONVIF, GB28181 |
Development | Easy to use SDK available |
Optical Network | Optional built-in optical fiber module, Single-mode optical fiber output, Improve anti-interference |
General | |
Power Supply | AC/DC 24V, Anti-reverse polarity protection |
Power Consumption | ≤180W |
Working Temperature | -40°C ~ +60°C |
Storage Temperature | -45°C ~ +70°C |
Humidity | <90%Rh |
Lightning Protection | Built-in surge protection 6000V |
Anti-salt Spray | PH value of 6.5 to 7.2, continuous spraying for 96 hours |
Ingress Protection | IP66 |
Weight | 45Kg (Including the mount) |
