Key Features

• Resolution 256x192  VOX Uncooled Thermal Imager

• Over-temperature Warning, automatic alarm

• Built-in Speaker, Support voice broadcast

• Support 10 detection areas, each area can set the area name, emissivity, distance, alarm temperature information of the detection object separately

• Real-time monitoring, timely and accurate detection of fire conditions and warnings, providing quick and effective guidance for fire fighting operations

• Multipel languages,Support VMS

• Support HDMI output (No need PC)

Specifications

ModelJVS-FPT-DL18
Display
SensorImage Sensor:1/2.9" CMOS SensorThermal Sensor:Uncooled VOX Sensor
Video ResolutionCamera:1920x1080Thermal:704x576
Effective Pixels2.0MP
Compression StandardH.265/H.264
Frame RateDefault 25fps, MAX 30 fps
Bit Rate204 Kbps~8Mbps adjustable
Camera
Lens6mm,M12
 FOVH: 53.7°, V:28.8° ,D:62.0°
Function
Exposure ControlSupport
White BalanceAuto
Image EnhancementBLC/HLC/3D DNR/DWDR/Defog
Advanced OSD

Support OSD large font function, OSD and time to set the position separately

,8 lines x 48 characters

Privacy MaskSupport 8 Rectangle Areas
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and night functionFull color, black and white is not supported
Intelligent AnalysisTemperature  Alarm ,Region Intrusion, Line Crossing,
Alarm Method Email Alarm, Client Alarm, Voice Alarm
Remote OperationSystem , Audio and video , Image , Alarm , Network management,Intelligent Analysis

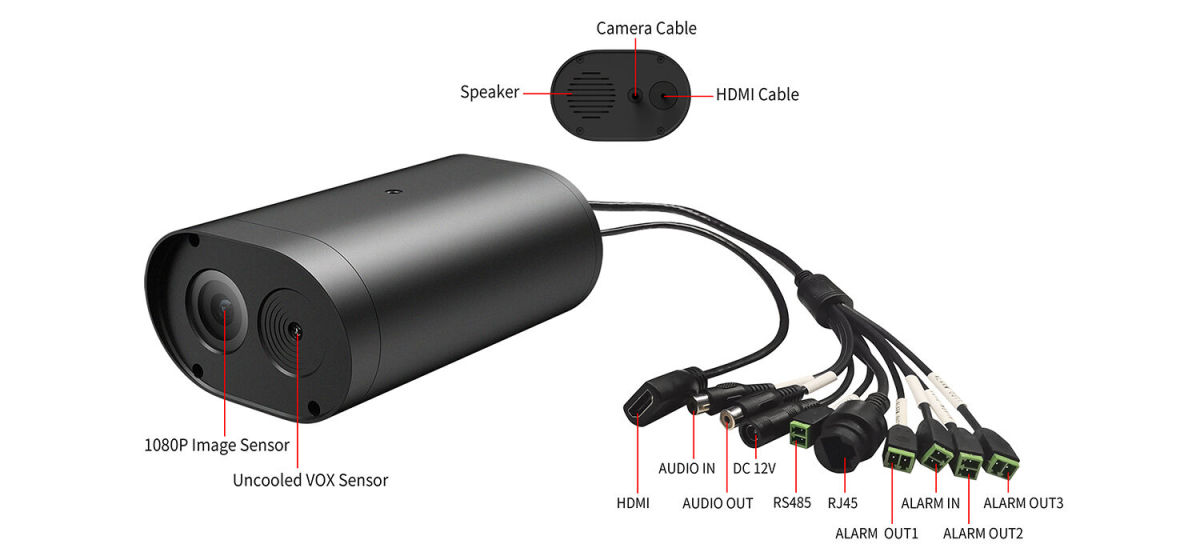

Expansion InterfaceSupport Audio Input, RS485, HDMI Output, 1 Alarm Input, 3 Alarm Output
Temperature  Alarm
Temperature Range-10℃~+550℃
Thermal Focus3.2mm
Thermal256x192
 FOV56x42
Temperature Area10 Detection Areas
Temperature Distance2~40m
Over-Temperature Alarm               Support
Network
Ethernet10M / 100M Ethernet ,1 RJ45
Stream2x Streams(Camera)
ProtocolsHTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS
ONVIFONVIF Standard
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V
Power Consumption<5W
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialMetal
Dimensions (WxHxD)115x75x207mm)
Weight960g
WaterproofIP20


Temperature Accuracy

Distance TargetTarget SizeTemperature Accuracy
2≥1.66cm*1.66cm±1℃
5≥4.15cm*4.15cm±2℃
10≥8.30cm*8.30cm±3℃
20≥16.6cm*16.6cm±3℃
30≥24.9cm*24.9cm±3℃
40≥33.2cmx33.2cm±3℃

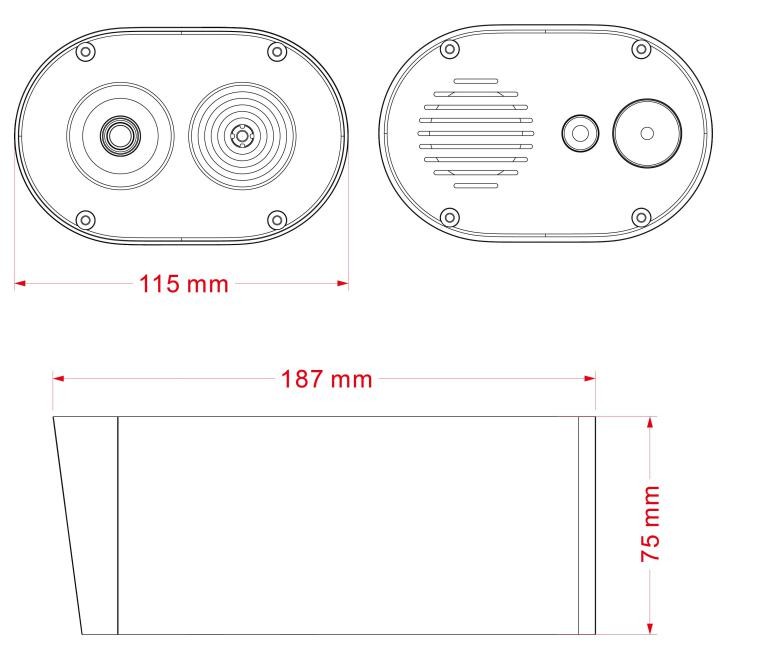

Dimension(mm)
