JVS-H302-A2
2MP Wi-Fi Bullet IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 1920x1080

• With IR LED, Monitoring day and night

• Dual Antenna 2.4Ghz Wi-Fi and 10/100M RJ45 Port

• Supports smartphone remote viewing

• Ingress Protection IP66

• Support 128GB SD Card

• Two-Way Talk Support

Specifications

ModelJVS-H302-A2
Video
Image Sensor1/ 2.7” CMOS Sensor
Max Resolution1920x1080
Effective Pixels2.0MP
Compression StandardH.265
Framerate20fps
Bitrate 40~8192Kbps
SNR (dB)40db
Illumination0Lux (IR ON)
Lens
Lens4mm
Viewing AngleH 87.4°, V 47°, D: 104°
IR-LEDs18x LEDs
IR-DistanceUp to 15m
Function
Privacy MaskingSupports 4 Zone masking
Exposure ModeAuto
Automatic Gain ControlAuto
White BalanceAuto
Image EnhancementAGC/ AWB/ AEC/ 3D DNR
Motion DetectionSupport
Two-Way TalkSupport
Remote Control

System Management, Audio/Video Management, Image Management,

 Storage Management, Alarm Management, Network Management.

Triggered Events ToClient, Email, Phone
Interface
Audio In & OutBuilt-in Mic and Speaker
SD CardSupport Max. 128GB
Reset SwitchSupport
Network
Ethernet10M/100M Ethernet, RJ45 Port
Wi-FiWi-Fi (IEEE802.11b/g/n), 2.4Ghz
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, DHCP, DNS
LANSupport
Network Transmission           CloudSEE P2P Transmission Protocol
General
Power SupplyDC12V/1A
ConsumptionDay ≤3W; Night ≤6W
Working Temperature-20°C～55°C
HumidityRh 10%～90%
MaterialAluminum & Plastic
Dimensions186.82x56.27x68.08mm
Weights350g
InstallationWall, Ceiling Bracket Mounting

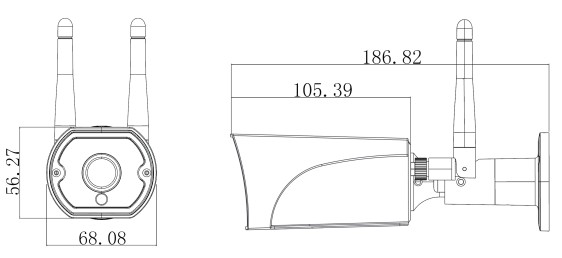

Dimensions(mm)
