JVS-H950E

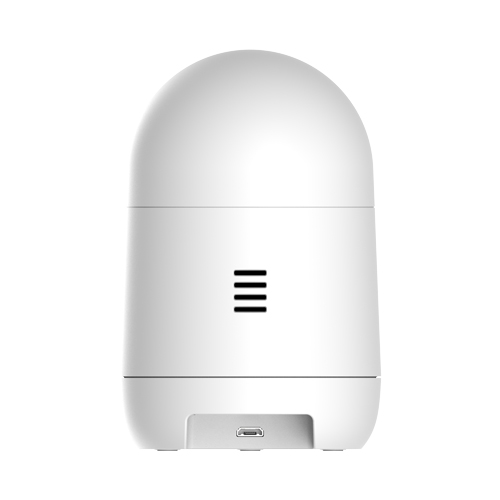

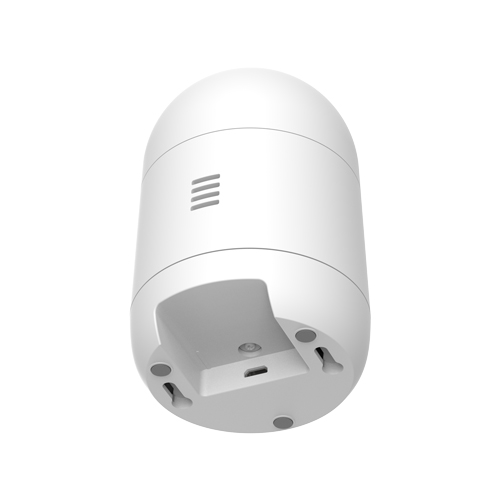

3.0MP Wi-Fi Pan/Tilt Network Camera
Message
Features
Specification
Accessories
Download

Key Features

  • 3MP HD quality, capture every detail

  • Built-in speaker + Mic, two-way voice real-time intercom, as real as face-to-face

  • One-click physical shielding to protect user privacy

  • One-key to call family member, open two-way real-time voice intercom or video call

  • Support AP Hotspot, QR code + Sound wave auxiliary Wi-Fi setting

  • Support Region Intrusion, Line Crossing, Humanoid Tracking

  • Support Micro SD card storage up to 256GB

  • Support ONVIF protocol

Specifications
Video
Image Sensor1/2.8" CMOS Sensor
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.264/H.265
Frame Rate25fps
Bitrate

Main Stream: 256Kbps ~ 4096Kbps

Sub Stream: 68Kbps~1024Kbps

SNR (dB)52dB
Min. Illumination0Lux (IR ON)
Lens
Interface TypeM12
Lens4mm
FOV4mm:H 87°, V 41°, D 93°
Function
Audio CodecG.711U/G.711A (Default)
One-key CallingSupport
PTZ CalibrationSupport
Privacy MaskingSupport
Hourly ChimeSupport
Exposure ControlAuto
White BalanceAuto
Gain ControlAuto
Digital 3D Noise ReductionSupport
OSD Information SettingLarge font OSD, OSD flashing on alarm, OSD position settings
SNTPSupport
Schedule RebootSupport
Motion DetectionSupport
Image SettingSupport Saturation, Brightness, Contrast, Sharpness adjustment
Image StyleStandard, Soft, Transparent
Day and Night FunctionAuto Switching, Schedule Switching, Day Mode, Night Mode
Privacy MaskSupport up 8 areas
Electronic Screen SettingSupport Max & Min Exposure Time setting
Night Vision OptimizationSupport
DWDRSupport
Screen SettingsScreen Mirroring, Screen Flipping
IP AdaptationSupport automatic adaptation of IP address
Intelligent AnalysisSupport Region Intrusion, Line Crossing, Humanoid Tracking
Alarm MethodEmail Alarm, Client Alarm, Mobile APP push
Remote OperationSystem, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis
SD CardUp to 256GB
Pan/TiltH:347°; V: 86° (-35° ~ 51°)
Network
Wireless ProtocolIEEE 802.11b/g/n 2.4GHz
Stream2x Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIFStandard ONVIF
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari 5.02+
UserUp to 13 Users
General
Lights1pcs IR LED
IR DistanceUp to 10m
Status IndicatorSupport, Red & Blue Indicator
Power SupplyDC 5V/1.5A
Power Consumption≤5.42W
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 95% Rh, non-condensing
Color/MaterialWhite, ABS+PC
Dimensions (WxHxD)75.5x75.5x115.5mm
Weight175g
Installation MethodDesktop, Ceiling mount
Packing Quantity40 sets/box
