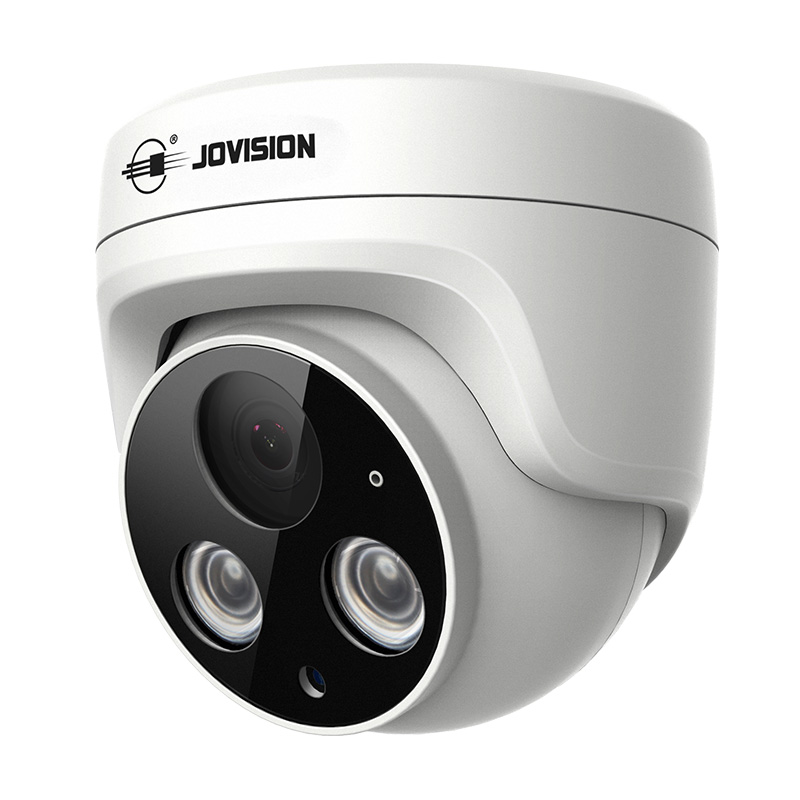

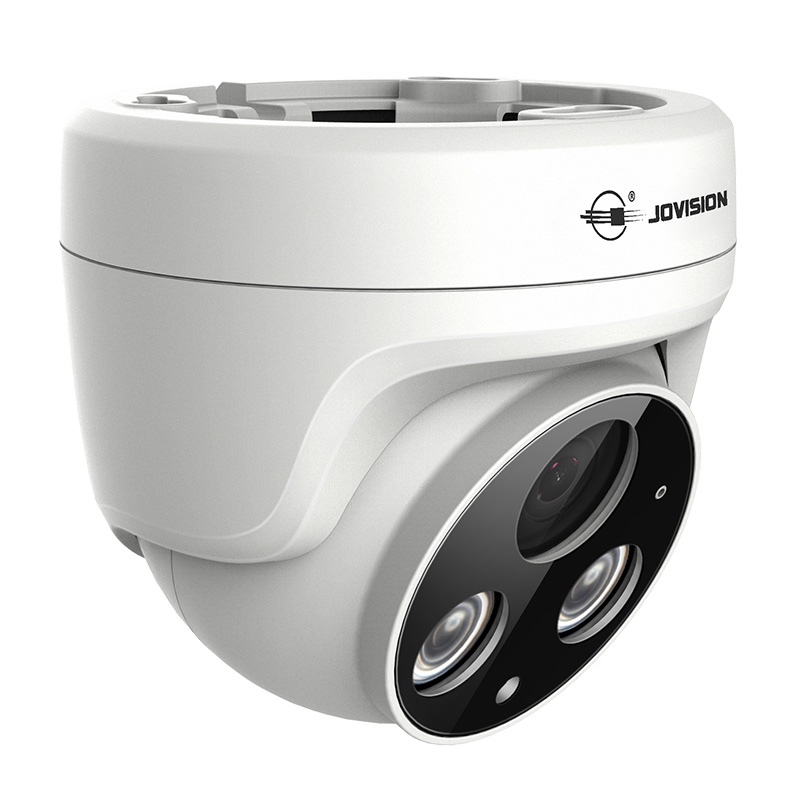

5MP PoE Dome IP Camera
JVS-N955-HY
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2560x1792@20fps

• With Starlight function

• With Internal PoE

• Built-in Microphone, support Audio Recording

• 2.8mm wide angle lens

Specifications
ModelJVS-N955-HY
Video
Image Sensor1/3” CMOS Sensor
Max Resolution2560x1792
Effective Pixels5.0MP
Compression StandardH.265/ H.264
Framerate20fps
Bitrate282Kbps~8Mbps
SNR (dB)51dB
Min. Illumination0Lux (IR ON)
Lens
Lens2.8mm, M12
Viewing AngleH: 88.5°, V: 65.3° D: 107.2°
IR-LEDs28µ 2x LEDs
IR-DistanceUp to 12m.
Function
Exposure ControlAuto
White BalanceAuto
Image Enhancement3D DNR
Advanced OSDSupport OSD large font function, OSD flashing on alarm, OSD and time to set the position separately
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
AudioBuilt-in mic
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
InteroperabilityONVIF 2.4
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/1.5A, IEEE 802.3af PoE
Consumption<3W (During day); <9W (At night)
Working Temperature                      -30℃~60℃(-22℉~140℉)
Working Humidity10% ~ 90% Rh
MaterialPlastic
Dimensions103x105x103mm
Weight230g

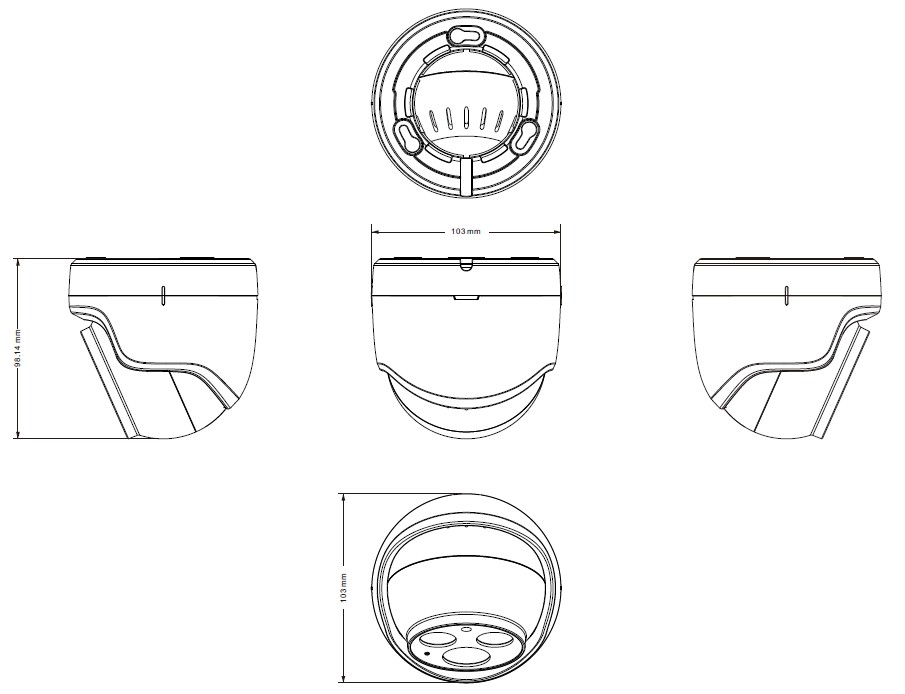

Dimension(mm)


JVS-N955-HY 5MP PoE Dome IP Camera.pdf
