JVS-19LED-A
19” LED Monitor
Message
Features
Specification
Accessories
Download

Key Features

1. HD: 1920*1080 with higher definition than the normal monitor.

2. Turn on the screen to automatically detect the resolution of the input signal in the lower left corner of the screen.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. Adopt 10bit image chip processing technology, high pixel progressive scan, fine texture.

8. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

9. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

10. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

11. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

12. Using nanotechnology, the picture is more three-dimensional, transparent.

Specification

Product typeProfessional Monitor
Product modelJVS-19LED-A
Screen size19"
Screen typeLED
Screen ratio16: 9
Brightness300 cd/m²
Contrast ratio3000:1
Response time5 ms
Viewing area408.24×255.15 mm
Viewing angle160°/ 170°
Display color16.7M
Clearness1920*1080(Compatible with 4 k)
Control methodpanel infrared
Input port

USB input,audio input ,audio output,audio left channel input,audio right channel input,

AV input,HDMI input,VGA input,power

Audio output2 stereo speakers
Head set holeaudio input
Power supply mode12V/3A
Power frequency50/Hz
Total power20W
Casingfireproof plastic
Product outer dimensions436*290 not including the foot height(foot height:82mm)
Installation methodbase, wall mount
Product weight2.5kg
Packing size525mm*95mm*432mm
Gross weight3.4kg
Packing size5pcs in 1 case  553*550*432mm
Gross weight18kg
Working environment temperaturemost suitable for 20℃
Working environment humidity10%-90%RH
Storage temperature-20℃- 60℃

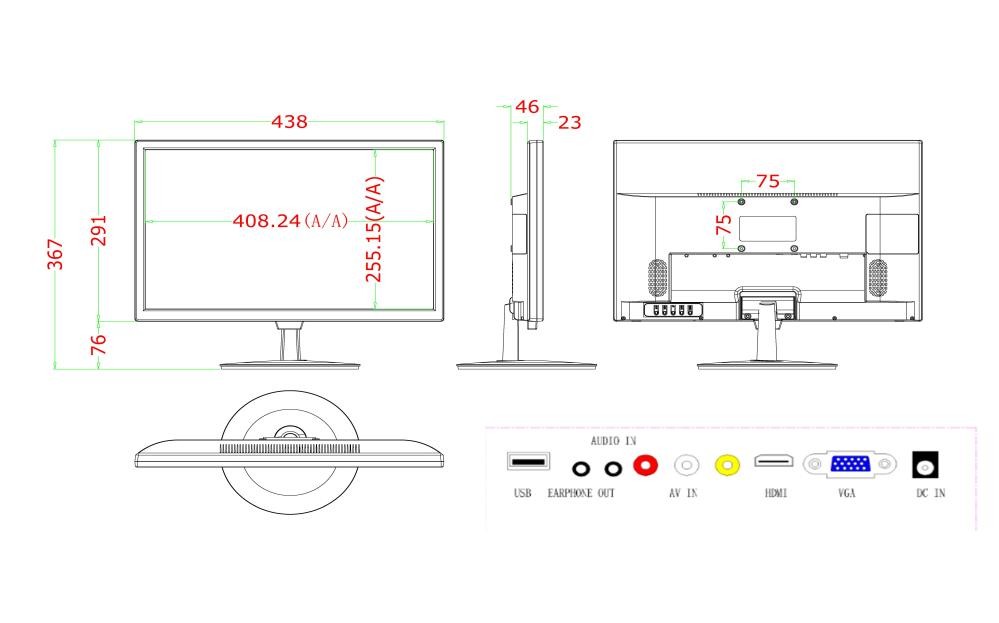

Dimension
