Key Features

1.HD: 3840*2160, 4 times higher than normal monitor.

2. Turn on the screen to automatically detect the resolution of the input signal in the upper right corner of the screen.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. It adopts full metal casing, strong structure, fireproof, moisture proof and shockproof, especially suitable for equipment that is susceptible to electromagnetic interference.

8.  Adopt 10bit image chip processing technology, high pixel progressive scan, fine texture.

9. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

10.  Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

11. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

12. 6.5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

13.Using nanotechnology, the picture is more three-dimensional, transparent.

14.This machine also comes with a splicing function, no external splicer.

Specification
Product typeProfessional Monitor
Product modelJVS-43LED-A
Screen size43"
Screen typeLED
Screen ratio16:9
Brightness400nit
Contrast ratio5000:1
Response time6.5 ms
Viewing area941.184(H)x529.416(V) mm
Viewing anglewide
Display color1.07B
Clearness3840*2160
Control methodPanel, infrared
Input portHDMI*2 VGA*1 USB*1 DVI*1   AV*1  232 *1
Output port232 * 2
Audio output2 * stereo speakers
Power supply mode110-220V/0.7A
Power frequency50-60Hz
Total power75W
Casingprofessional fireproof iron shell, plastic frame(plastic  base)
Dimensions966mm*563mm*83mm,not including the foot height(foot height: 46mm)
Installation methodbase, wall mount
Product weight7.3kg
Packing size1000mm *625mm *110mm
Gross weight9kg
Packing size2pcs in 1 case, 1060mm*675mm*270mm
Gross weight20kg
Working environment temperature0~50℃
Working environment humidity10%-90% RH
Storage temperature- 20℃~ 60℃

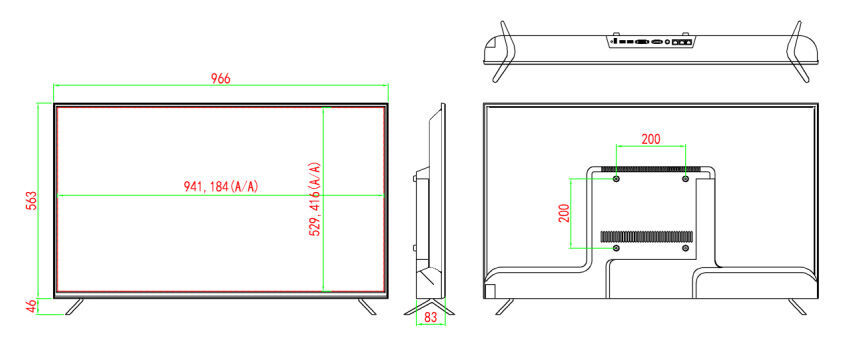

Dimension
