JVS-32LED-A
32'' LED Monitor
Message
Features
Specification
Accessories
Download

Key Features

1. HD: 3840*2160, 4 times higher than normal monitor.

2. Turn on the screen to automatically detect the resolution of the input signal in the upper right corner of the screen.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. It adopts full metal casing, strong structure, fireproof, moisture proof and shockproof, especially suitable for equipment that is susceptible to electromagnetic interference.

8. Adopt 10bit image chip processing technology, high pixel progressive scan, fine texture.

9. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

10. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

11. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

12. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

13. Using nanotechnology, the picture is more three-dimensional, transparent.

14. This machine also comes with a splicing function, no external splicer.

Specification
Product typeProfessional Monitor
Product modelJVS-32LED-A
Screen size32"
Screen typeLED
Screen ratio16:9
Brightness500nit
Contrast ratio3000:1
Response time5 ms
Viewing area694x376mm
Viewing angle160°/ 170°
Display color16.7M
Clearness3840*2160
Control methodPanel infrared
Input portHDMI*3/VGA*1/Rf*1/PC Audio in*1/CVBS*1/USB*2
Output portCoax out*1/Earphone*1
Audio output2*Stereo speakers
Power supply mode110-220V
Power frequency50-60Hz
Total power50W
Casingprofessional fireproof iron case, plastic frame (plastic stand)
Product outer dimensions730*430*74 does not include foot height (foot height 45mm)
Installation methodbase stand, wall mount
Product weight5.1kg
Packing size765*110*500
Gross weight5.5kg
Packing size5 pcs/ carton, 790*495*500mm
Gross weight24kg
Working environment temperaturemost suitable for 20℃
Working environment humidity10%-90% RH
Storage temperature- 20℃~ 60℃

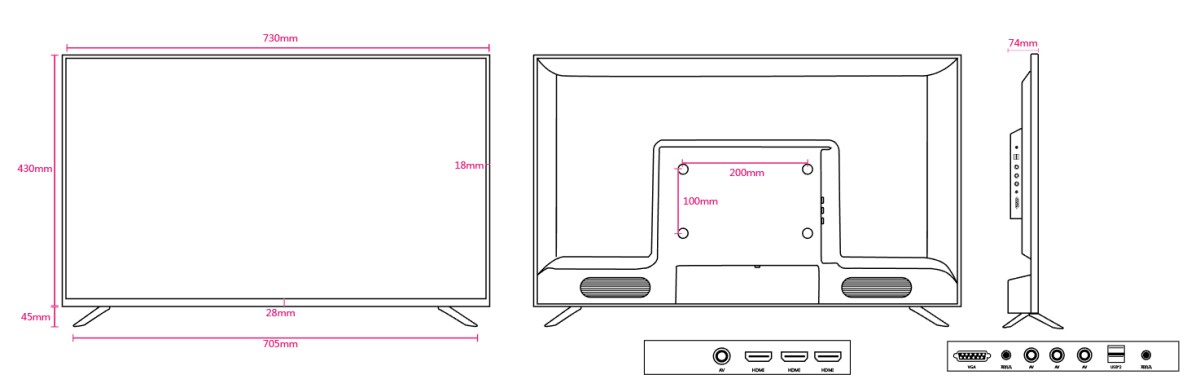

Dimension
