JVS-N637-UDL

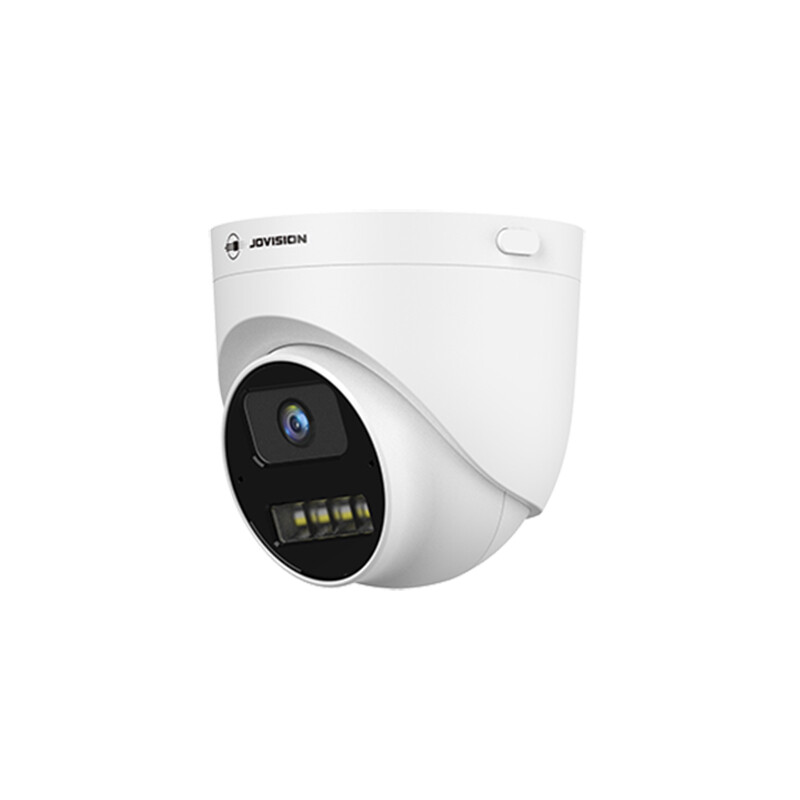

6.0MP Full-Color Video & Audio PoE Network Camera
Message
Features
Specification
Accessories
Download
Features
  • Full-Color with Dual Smart Illumination

  • Agi Sense Technology for accurate Humanoid Detection and Vehicle Detection

  • Built-in Mic and Speaker

  • AI-ISP for excellent video performance

  • Equipped With unique VQC (Video Quality Catalyst) Technology

  • Integrated with unique SAFE function

Specifications

Video
Image Sensor1/3" CMOS Sensor
Max. Resolution3200x1800
Effective Pixels6.0MP
Compression StandardH.264/H.265
Framerate25fps
Bitrate

Main Stream: 256Kbps ~ 10Mbps

Sub Stream: 68Kbps ~ 3072Kbps

SNR (dB)49.3dB
Min. Illumination0Lux (light ON)
Lens
Interface TypeM12
Lens2.8mm
FOV2.8mm:H 98.4°, V 53.4°, D 114.1°
Function
Audio CodecG.711U/G.711A (Default)
Exposure ControlAuto, HLC, BLC
White BalanceAuto
Gain ControlAuto
OSD Information SettingLarge font OSD, OSD flashing on Alarm, OSD Position Settings
SNTPSupport
Schedule RebootSupport
Smart DefogSupport
Motion DetectionSupport Humanoid Detection   & Vehicle Detection
Image SettingSupport Saturation,   Brightness, Contrast, Sharpness adjustment
Image StyleStandard, Soft,   Transparent
Day and Night FunctionAuto, Always Black & White, Always Color, Scheduled Color
Privacy MaskSupport up 8 areas
Night Vision OptimizationSupport
WDRSupport
Screen SettingsScreen mirroring, Screen   flipping
IP AdaptationSupport automatic adaptation of IP address (Optional)
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and Video, Image, Alarm, Network management
Audio FunctionBuilt-in Mic x2 and Speaker x1
VQC TechnologySupport
SAFE FunctionSupport
Network
Ethernet10/100Mbps Ethernet
Stream2x Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP,   RTCP, SMTP, DHCP, DNS
ONVIFStandard ONVIF
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Lights4x White LEDs + 4x IR LEDs
IR DistanceUp to 30 Meters
White Led DistanceUp to 20 Meters
Waterproof LevelIndoor use only
Power SupplyDC12V or PoE (IEEE802.3af)
Power Consumption<3W (During Day); <6W (At Night)
Working Temperature-30°C ~ 60°C
Working Humidity5% ~ 93% Rh
Color/MaterialBlack & White/ Plastic + Metal
Dimensions (W x H x D)108x104x106mm
Weight300g
Installation MethodCeiling mount
