  • JVS-N3122SL

›

JVS-N3122SL
2MP Vandalproof Starlight PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 1920x1080@20fps.

• Ingress Protection IP66.

• PoE IEEE 802.3af.

• 18x IR-LED, up to 20 Meters.

• Supports CloudSEE APP on iOS/Android.

• ONVIF 2.4, Compatible with ONVIF Recorder.

• Support Behavior analysis.

Specifications

ModelJVS-N3122SL
Video
Image Sensor1/2.7” CMOS
Max. Resolution1920x1080
Effective Pixels2.0MP
Compression Standard                    H.265/H.264
Framerate30fps
Bitrate 261Kbps~8129Kbps
SNR (dB)38.4dB
Illumination0.05Lux
Lens
Lens2.8mm / 4mm
Viewing Angle2.8 mm: H 92.5°, V 59.9°, D: 108.5°4 mm: H 79.6°, V 47.7°, D: 97.8°
IR-LEDs18x IR LEDs
IR-DistanceUp to 20m.
Function
Exposure ControlAuto
White BalanceAuto
Image Enhancement3D DNR
Advanced OSDSupport OSD large font function, OSD flashing on alarm, OSD and time to set the position separately
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
StarlightSupport
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
InteroperabilityONVIF 2.4
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/2A, IEEE 802.3af PoE
Consumption<3W (During day); <7W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialAluminum
Dimensions120x90 mm
Weight500g
WaterproofIP66

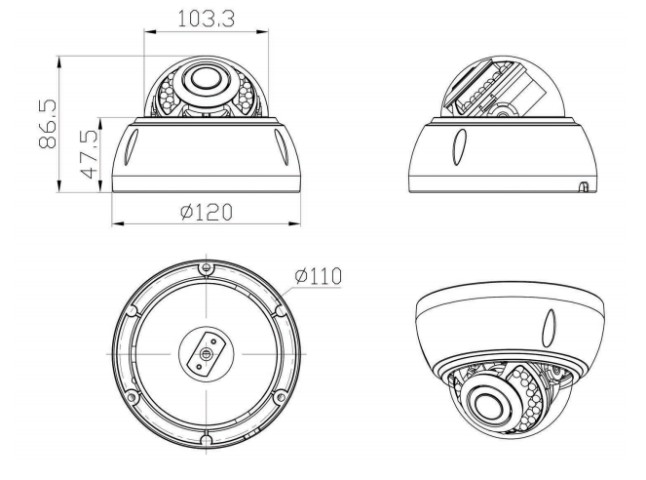

Dimensions (mm)
