JVS-N5022
5MP Vandalproof Starlight PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2592x1944@20fps

• Ingress Protection IP66

• PoE IEEE 802.3af

• 18x IR-LED, up to 20 Meters

• Supports CloudSEE APP on iOS/Android

• ONVIF 2.4, Compatible with ONVIF Recorder

Specifications

ModelJVS-N5022
Video
Image Sensor1/ 3” CMOS Sensor
Max. Resolution2592x1944
Effective Pixels5.0MP
Compression StandardH.265
Framerate20fps
Bitrate 128Kbps ~ 8Mbps
SNR (dB)38.6db
Illumination0Lux (IR ON)
Lens
Lens2.8 mm
Viewing AngleH 88.5°, V 65.3°, D: 107.2°
IR-LEDs14µ 18x LEDs
IR-DistanceUp to 20m.
Function
Exposure ControlAuto
White BalanceAuto
Image Enhancement3D DNR
Advanced OSDSupport OSD large font function, OSD flashing on alarm, OSD and time to set the position separately
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport
Intelligent AnalysisNot Support
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
InteroperabilityONVIF 2.4
Network Transmission                     CloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/2A, PoE IEEE 802.3af
Consumption<3W (During day); <7W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialAluminum
Dimensions120x90mm
Weight500g
WaterproofIP66

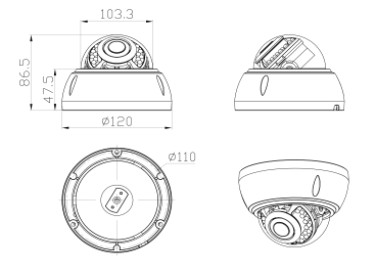

Dimensions(mm)
