JVS-XD2508-FC10T

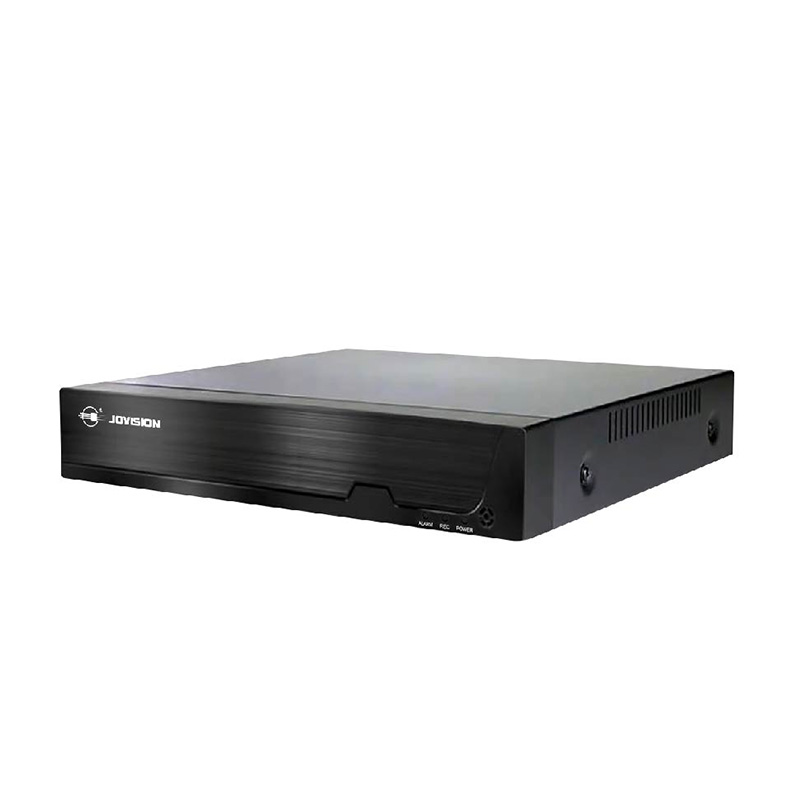

8CH 5MN XVR
Message
Features
Specification
Accessories
Download

Key Features

• TVI / AHD / DVR / NVR / CVI 5-in-1 function, multi-mode input, support HD analog video encoding, support HD analog + HD network video input, support pure HD network video input.

• Supports various mobile phone monitoring (iPhone Android).

• Support multiple web browsers (IE / Chrome / Firefox / Safari).

• Support VGA,HDMI output at the same time.

• Support STVI function.

• Support coaxial audio

• Support multi-languauge

Specifications

ModelJVS-XD2508-FC10T
System
CompressionH.265
O/SEmbedded Linux O/S
Video and Audio
Video Input8CH,BNC
Preview Ability8*5MN@12.5fps（4 in 1）8*4MN@15fps（4 in 1）8*1080N@25fps（4 in 1
Coding Ability8*5MN@6fps（4 in 1）8*4MN@8fps（4 in 1）8*1080N@15fps（4 in 1）
Decoding Ability8*5MN@6fps（4 in 1） 8*4MN@8fps（4 in 1）8*1080N@15fps（4 in 1）
Video Output1CH VGA;1CH HDMI
Channel ModeSupport any channel mode combination (5MN analog + 1080P digital)
Audio In & Out1/1, RCA
Video StandardPAL/NTSC
Storage
SATA1x SATA Interface
CapacityUp to 8TB Max.
File FormatH.26X、AVI
Backup ModeUSB
Playback and Backup
Video PlaybackAuto/Timing/ Motion detection
Sync Playback4CH
Search ModePoint-in-time search, Calendar search, Event search, Channel search
Network
Ethernet10/100 Mbps,1 RJ45
Network FunctionTCP/IP, DHCP, DDNS, NTP, SMTP
InteroperabilityONVIF Standard
Smart PhoneiPhone, Android
Hardware
Network Interface1x RJ45
USB Interface2x USB2.0
PTZ InterfaceSupport RS485 PTZ
Controlling DeviceMouse
Alarm InputNot Support
Alarm OutputNot Support
Special
Multi-Screen Display       1/4/8/9
Alarm MethodEmail Alarm
Digital ZoomNot Support
Two-Way TalkSupport
Alarm SnapshotSupport
Intelligent Analysis             Support Motion Detection、Video Tampering、Video loss
General
Power SupplyDC12V/2A
Consumption≤8W（without HDD）
Working Temperature-10°C ~60°C
Working Humidity10% ~ 90% Humidity
Dimensions250x223x42mm
Weight837g


Description

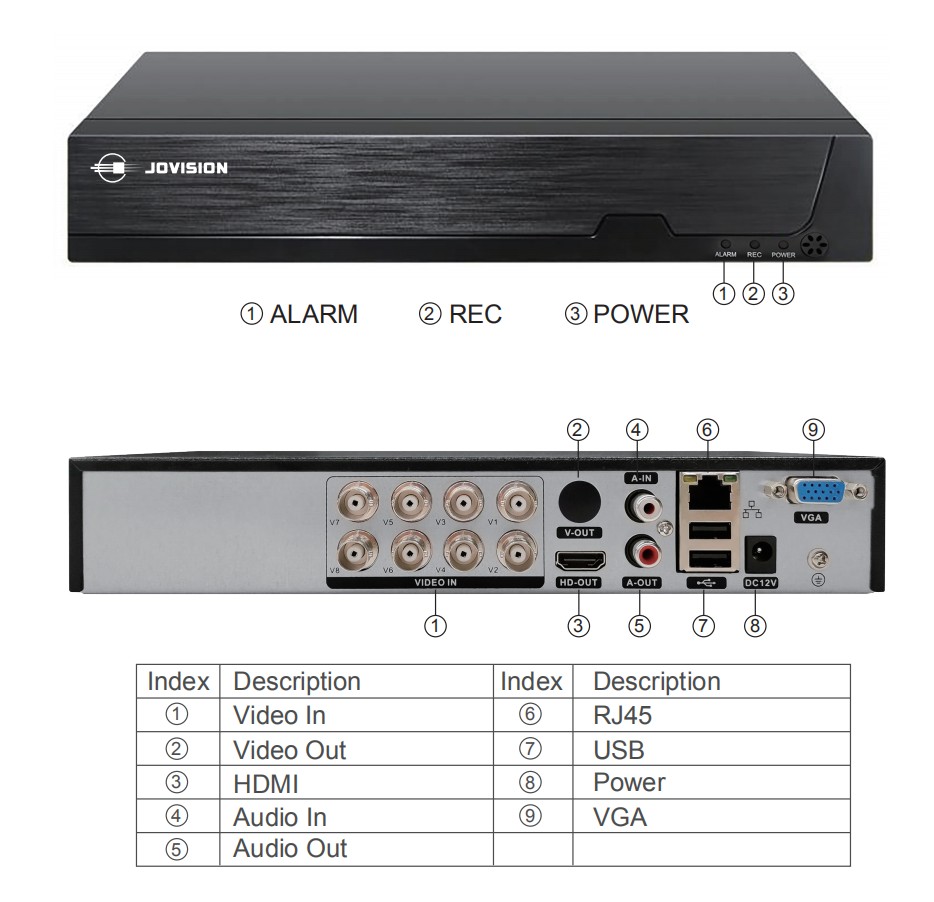

T系列8路 示意图.png
