JVS-XD2516-FC10T
16CH 5MN XVR
Message
Features
Specification
Accessories
Download

Key Features

• TVI / AHD / DVR / NVR / CVI 5-in-1 function, multi-mode input, support HD analog video encoding, support HD analog + HD network video input, support pure HD network video input.

• Supports various mobile phone monitoring (iPhone Android).

• Support multiple web browsers (IE / Chrome / Firefox / Safari).

• Support VGA,HDMI output at the same time.

• Support STVI function(Need camera support STVI).

• Support coaxial audio

• Support multi-languauge

Specifications

ModelJVS-XD2516-FC10T
System
CompressionH.265
O/SEmbedded Linux O/S
Video and Audio
Video Input16CH,BNC
Preview Ability

16*5MN@12.5fps(4 in 1)(support 12.5fps when camera is 5MP

)16*4MN@15fps(4 in 1)(support 15fps when camera is 4MP)16*1080N@25fps(4 in 1)

Coding Ability16*5MN@6fps(4 in 1)16*4MN@8fps(4 in 1)16*1080N@15fps(4 in 1)
Decoding Ability16*5MN@6fps(4 in 1) 16*4MN@8fps(4 in 1)16*1080N@15fps(4 in 1)
Video Output1CH VGA;1CH HDMI
Channel ModeSupport any channel mode combination (5MN analog + 1080P digital)
Audio In & Out1/1, RCA
Video Standard                          PAL/NTSC
Storage
SATA1x SATA Interface
CapacityUp to 8TB Max.
File FormatH.265
Backup ModeUSB
Playback and Backup
Video PlaybackAuto/Timing/ Motion Detection
Sync Playback16CH
Search ModePoint-in-time search, Calendar search, Event search, Channel search
Network
Ethernet10 / 100 Mbps,1 RJ45
Network FunctionTCP/IP, DHCP, DDNS, NTP, SMTP
InteroperabilityONVIF Standard
Smart PhoneiPhone, Android
Hardware
Network Interface1x RJ45
USB Interface2x USB2.0
Controlling DeviceMouse
Alarm InputNot Support
Alarm OutputNot Support
Special
Multi-Screen Display                         1/4/8/9/16
Alarm MethodEmail Alarm
Digital ZoomNot Support
Two-Way TalkSupport
Alarm SnapshotSupport
Intelligent AnalysisSupport Motion Detection、Video Tampering、Video loss
General
Power SupplyDC12V/2A
Consumption≤8W(without HDD)
Working Temperature-10°C ~60°C
Working Humidity10% ~ 90% Humidity
Dimensions250x223x42mm
Weight837g


Description

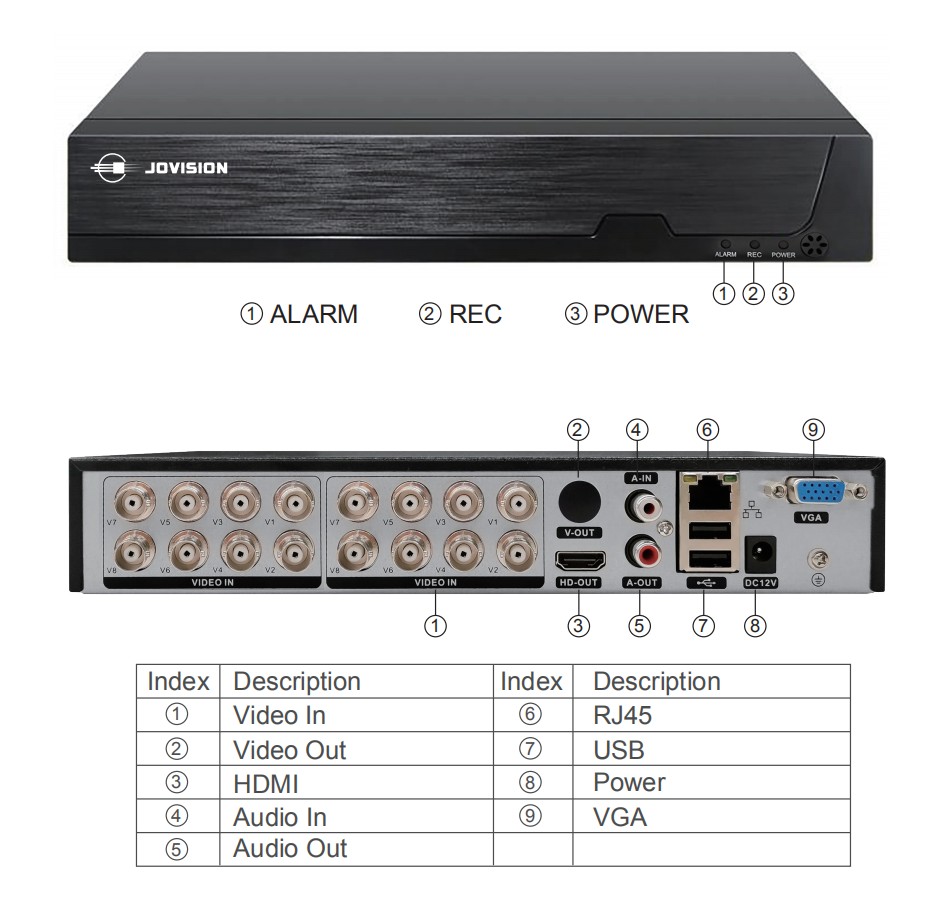

T系列16路 示意图.png
