JVS-N917-YDL

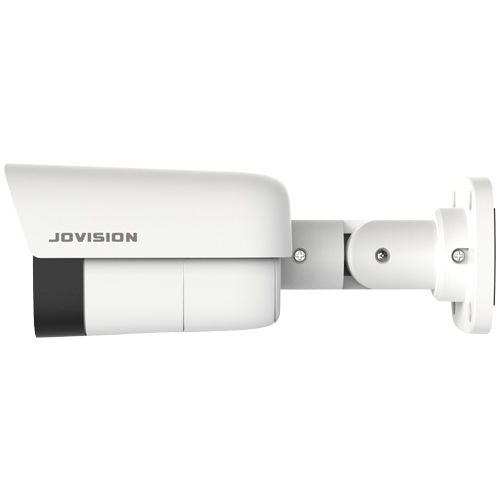

3.0MP Full-Color Video & Audio IP Camera
Message
Features
Specification
Accessories
Download

Features

  • Support Humanoid Detection

  • Built-in Mic and Speaker

  • Equipped With unique VQC (Video Quality Catalyst) Technology

  • Support SD Card (512GB)

  • IP67

Specifications
Video
Image Sensor1/2.9" CMOS Sensor
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.264/H.265
Framerate25fps
Bitrate

Main Stream: 294Kbps ~ 8192Kbps

Sub Stream: 58Kbps~ 2356Kbps

Min. Illumination0Lux (light ON)
Lens
Interface TypeM12
Lens4mm
FOVH 83.4°, V 43.1°, D 99.1°
Function
Audio CodecG.711U (default)/G.711A
Gain ControlAuto
Digital 3D Noise   ReductionSupport
OSD Information SettingLarge font OSD, OSD flashing on alarm, OSD position settings
Motion DetectionSupport Humanoid Detection
Image SettingSupport Saturation, Brightness, Contrast, Sharpness adjustment
Privacy MaskSupport up 8 areas
DWDRSupport
Screen SettingsScreen mirroring, Screen flipping
Intelligent AnalysisSupport Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis
Audio FunctionBuilt-in Mic and Speaker
SD CardSupport(512GB)
VQC TechnologySupport
Network
Ethernet10/100Mbps Ethernet
Stream2x Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIFStandard ONVIF
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp   to 13 Users
AppSupport iOS/Android
General
Lights3 White LEDs + 3 IR LEDs
IR DistanceUp to 30 Meters
Waterproof LevelIP67
Power SupplyDC12V or PoE
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Color/MaterialBlack and White/Plastic and Metal
Installation MethodWall or ceiling mount
