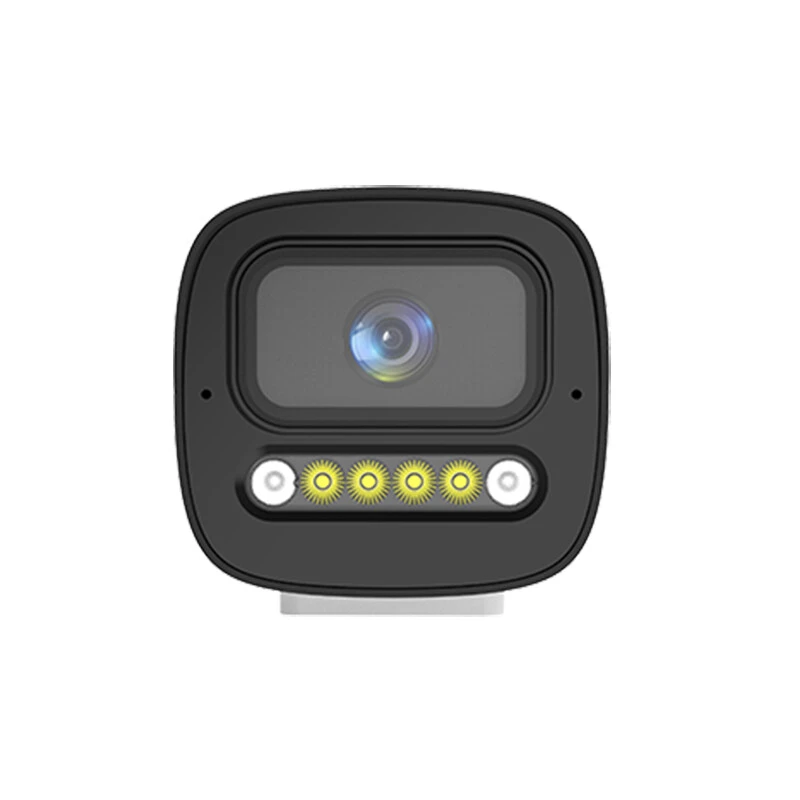

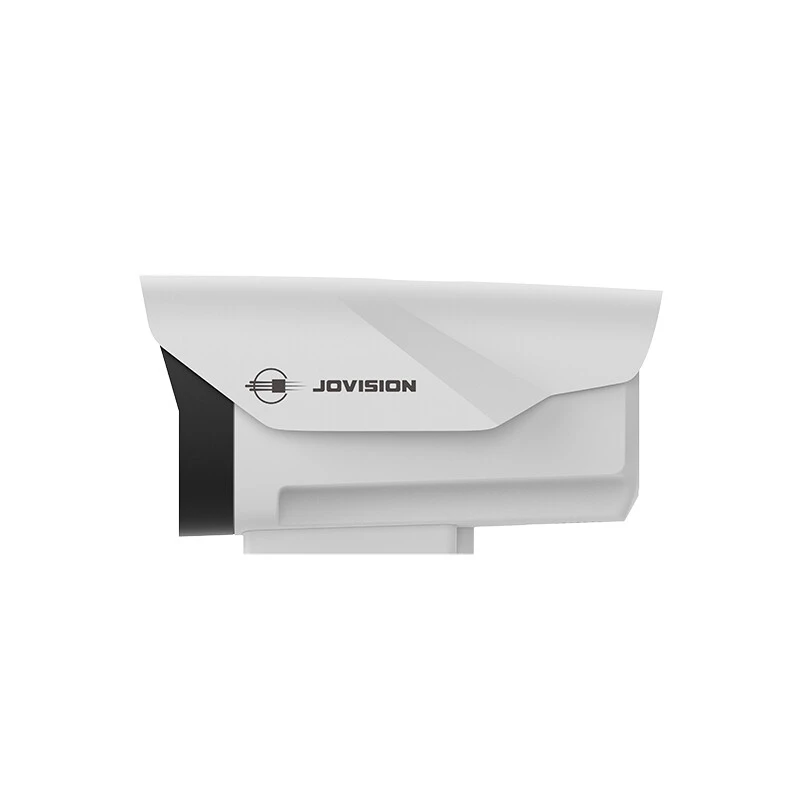

JVS-N517-FDL
5 MP AI Fire Detection Camera
Message
Features
Specification
Accessories
Download
Features

· Over 5 MP, maximum resolution 3072*1728.

· Equipped with MVT (Multistage Verification Technology)

· Built-in 1T computing power, supporting multiple intelligent algorithms Equipped with VQC Technology.

· F1.0 ultra-large aperture lens greatly increases the amount of light entering.

· Built-in dual MIC, supports dual MIC sound pickup and noise reduction, the sound pickup distance is farther and clearer.

· Support fire detection to ensure personal and property safety.

· Ingress Protection IP67.

Specifications
CAMERA
Image Sensor1/1.8'' CMOS
Min. IlluminationIR ON 0 Lux
Day & NightWarm light fill light, intelligent full color (default), fill light off
Lens4mm
FOVH: 93.9°; V: 50.5°; D:110.8°
LEDs6Pcs Warm LED
LED RangeUp to 30 m
LED AdjustmentAdaptive Dimming
Max Resolution3072*1728
Frame Rate25fps
Video CompressionH.265/H.264
Bit Rate (CBR/VBR)Main Stream: 256~8192KbpsSub Stream: 68~1024Kbps
Audio CompressionG.711a / G.711u
Image SettingSaturation, Brightness, Contrast, Sharpness
Image EnhancementAuto BLC/HLC/ Defog/Face mode/ License plate mode/ Night vision optimization
Privacy MaskSupport 8 Rectangle Areas
DWDRSupport
NETWORK
Network ProtocolsHTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS
Interface ProtocolsStandard ONVIF, GB28181, CloudSEE2.0
Auto IP ConfigurationSupport
Alarm TriggerFire Detection Motion Detection, Region Intrusion, Line Crossing
Web LanguageEnglish,
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
INTERFACE
Ethernet1 RJ45 10M / 100M Ethernet
AudioBuilt-in Mic and Speaker
SD Card512G
Reset ButtonSupport
GENERAL
Power SupplyDC12V/2A, PoE
Power Consumption<3W (During day); <9W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Dimensions104×98×184mm
Product Weight≤610g
Color / MaterialFront Shell: Black ADC12; Rear Shell: White PC+ABS
InstallationWall, Ceiling
