JVS-N510-LYT

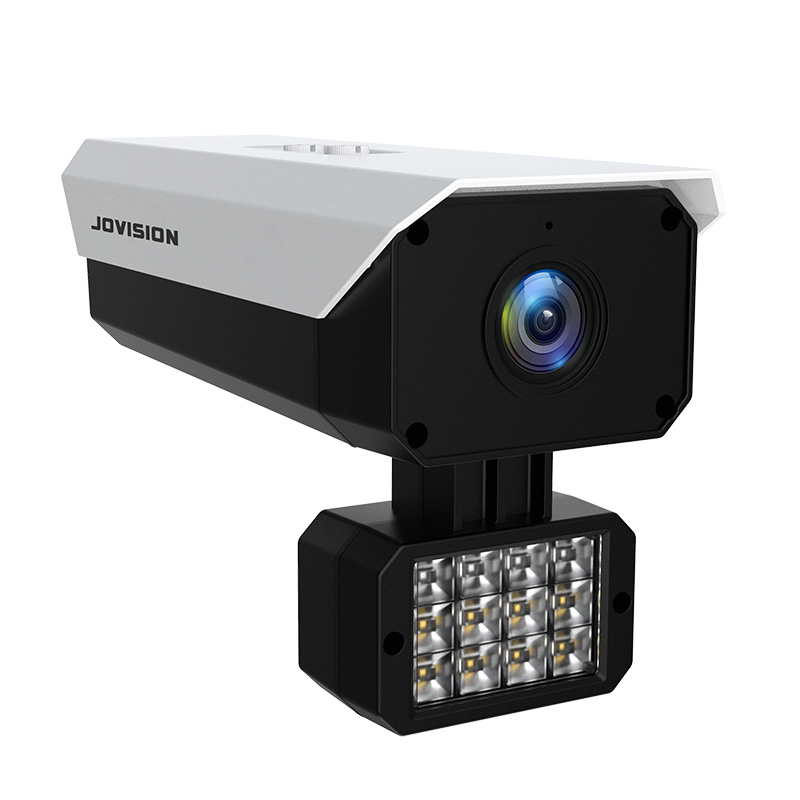

5MP Full-Color Bullet Audio IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2560x1792@20fps

• 4 IR LEDs + 8 White LEDs+1 Red Alarm LED+1 Blue Alarm LED

• Smart-light Modes (IR/Full-color/Alarm) available

• With Built-in MIC, support audio recording

• Support License Plate Detection, Viewing the License Plate clearly day & night

• AI Human Capture (Working on JOVISION AI NVR)

• Ingress Protection IP67

Specifications

ModelJVS-N510-LYT
Video
Image Sensor1/3" CMOS Sensor
Max Resolution2560x1792
Effective Pixels5.0MP
Compression StandardH.265/H.264
Frame Rate20fps
Bit Rate250Kbps～8Mbps
SNR (dB)52dB
Min. Illumination0Lux(BG/IR ON)
Lens
Lens4mm/6mm/8mm Optional
FOV

4mm：H: 80.0°, V: 41.7° D:94.6°6mm：H:49.7°, V:26.6° ,

D:57.3°8mm：H:38.6°, V:21.8° D:43.6°

IR-LEDs22µ x12 LEDs，1 Red Alarm LED+1 Blue Alarm LED
IR-DistanceUpto 50 Meters
Function
Exposure ControlSupport
White BalanceAuto
Image EnhancementBLC/HLC/3D DNRDWDR/Defog
Advanced OSD

Support OSD large font function, OSD and time to set the position separately,

5 lines x 16 characters

Privacy MaskSupport 8 Rectangle Areas
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and night functionDay and night automatic switching
Intelligent AnalysisRegion Intrusion, Line Crossing, People Counting, Video Tampering
Alarm Method Email Alarm
Remote Operation

System, Audio and video, Image, Alarm , Network management,

 Intelligent Analysis

Expansion InterfaceAlarm Audio Output
Network
Ethernet10M / 100M Ethernet ,1 RJ45
Stream3x Streams
ProtocolsHTTP, TCP/IP, ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS
ONVIFONVIF Standard
Network transmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
AppSupport iOS/Android
General
Power SupplyDC12V
Power Consumption<3W (During day); <6W (At night with IR)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialMetal + Plastic
Dimensions (WxHxD)223*94*137(mm)
Weight610g
WaterproofIP67

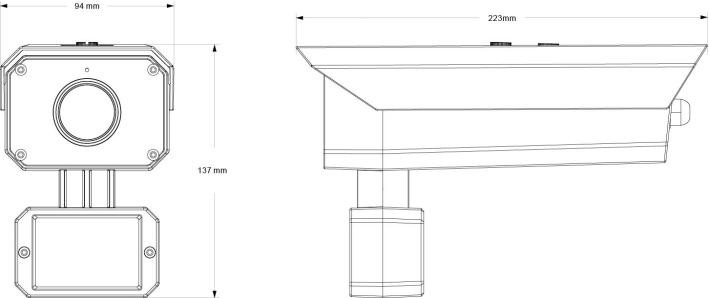

Dimension(mm)

JVS-N510-LYT
