JVS-N513-K1-PE
5MP Starlight Audio PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2592x1944@20fps

• Ingress protection IP67

• 4Pcs Array IR LEDs, IR Rand up to 50m.

• Supports CloudSEE APP on iOS/Android

• ONVIF 2.4, Compatible with ONVIF Recorder


Specifications

ModelJVS-N513-K1-PE
Video
Image Sensor1/3" CMOS Sensor
Max Resolution2560*1792/704*576
Effective Pixels5.0MP
Compression StandardH.265/H.264
Frame Rate20fps
Bit Rate282Kbps~8Mbps
Audio CompressionG711U/G711A
SNR (dB)51dB
Min. Illumination0Lux (IR ON)
Lens
Lens4mm,6mm,Optional
FOV4mm:H: 78.5°, V: 42.8° D:92.6°6mm:H: 49.2°, V: 27.7° D:56.1°
IR-LEDs28µ x 4 LEDs
IR-DistanceUp to 30 Meters
Function
Exposure ControlSupport
White BalanceAuto
Image EnhancementBLC/HLC/3D DNR/DWDR/ROI/Defog
Advanced OSD

Support OSD large font function, OSD and time to set the position separately

,5 lines x 32 characters

Privacy MaskSupport 8 Rectangle Areas
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionAuto
Intelligent AnalysisSupport Region Intrusion, Line Crossing, People Counting, Video Tampering
Alarm Method Email Alarm, Client Alarm
Remote OperationSystem, Stream, Alarm, Network, Storage Management, PTZ
Expansion InterfaceMIC Audio Input
Network
Ethernet10M / 100M Ethernet ,1 RJ45
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIFONVIF Standard
Network transmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V or PoE
Power Consumption<3W (During day); <6W (At night with IR)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Material Plastic
Dimensions (WxHxD)178*88*85.7(mm)
Weight440g
WaterproofIP67

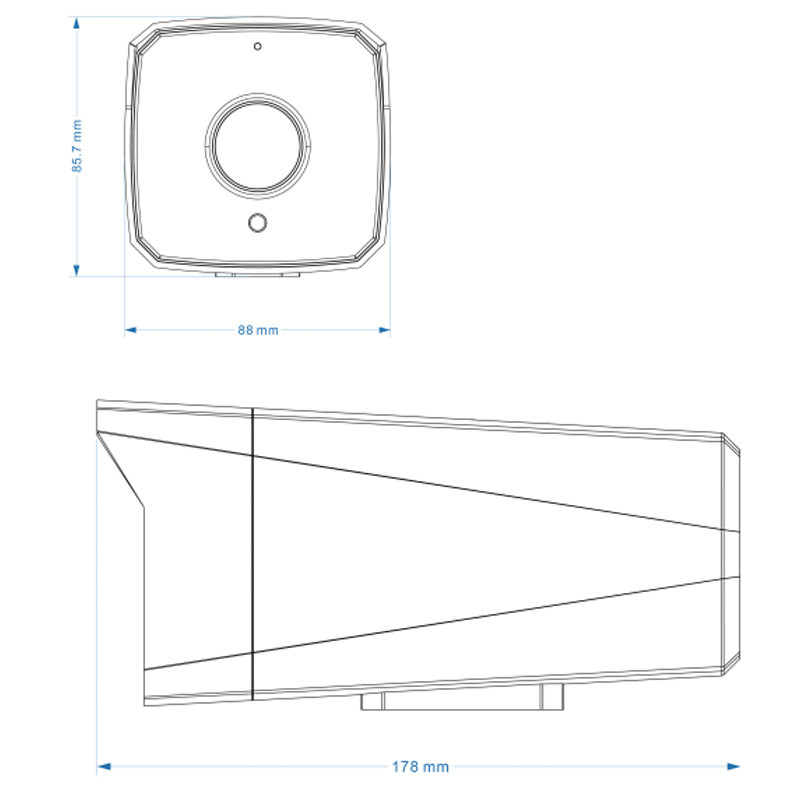

Dimension(mm)

JVS-N513-K1-PE
