JVS-N913-K1-PE

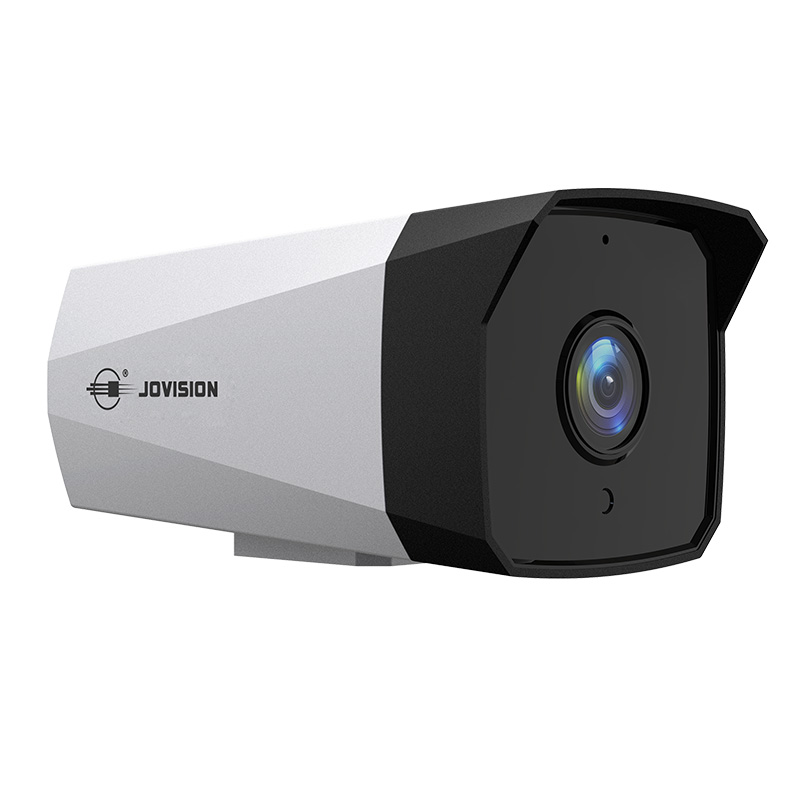

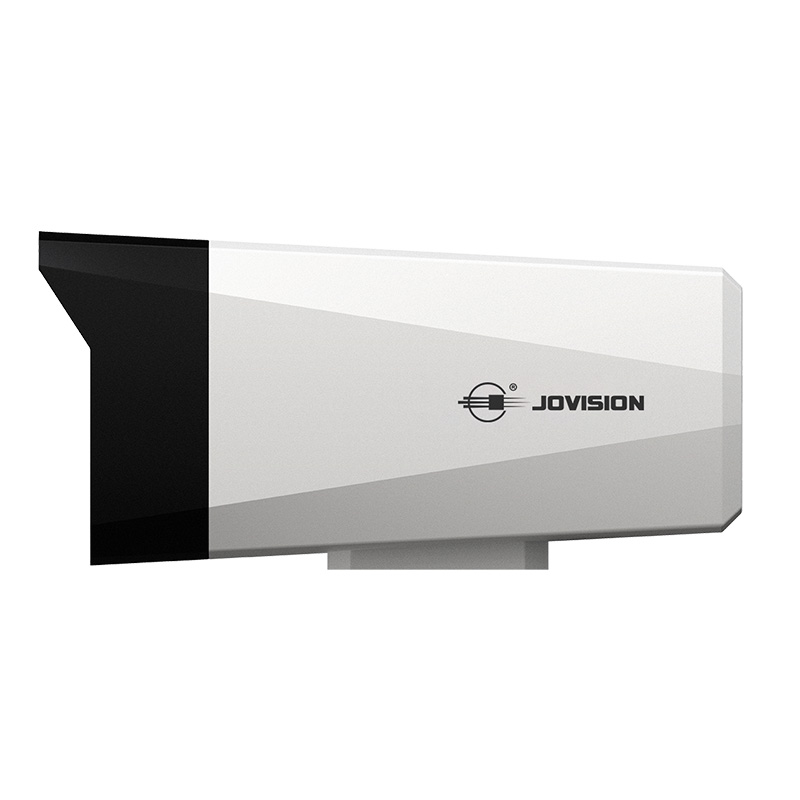

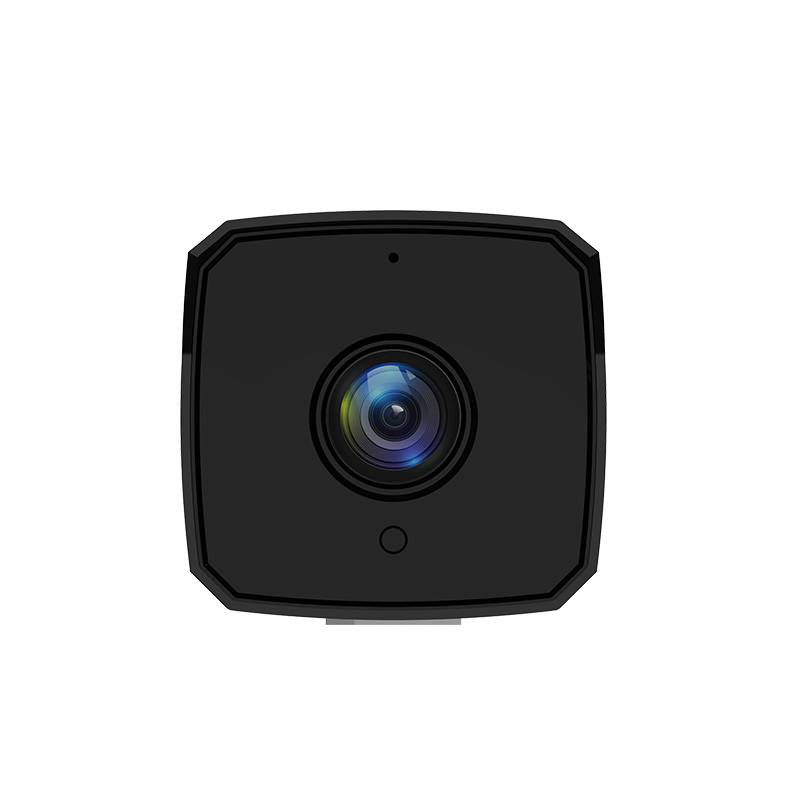

3MP Starlight Audio PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2304x1296@25fps

• 4 x high power IR LEDs

• Built-in Microphone, support Audio Recording

• With Starlight function

• With Internal PoE

• Ingress Protection IP67

• Support the optional function of automatically adapting to the IP address;

Specifications
ModelJVS-N913-K1-PE
Video
Image Sensor1/2.9" CMOS Sensor
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265/H.264
Frame Rate25fps
Bit Rate256Kbps~8Mbps
SNR (dB)52dB
Min. Illumination0Lux (IR ON)
Lens
Lens4mm,M12
FOVH: 78.5°, V: 42.8° D:92.6°
IR-LEDs28µ x 4 LEDs
IR-DistanceUp to 20 Meters
Function
Exposure ControlSupport
White BalanceAuto
Image EnhancementBLC/HLC/3D DNR/Defog
Advanced OSDSupport OSD large font function, OSD and time to set the position separately
Privacy MaskSupport 8 Rectangle Areas
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and night functionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm Method Email Alarm,
Remote OperationSystem , Audio and video , Image , Alarm , Network management
Expansion InterfaceMIC Audio Input
Network
Ethernet10M / 100M Ethernet ,1 RJ45
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS
ONVIFONVIF 2.4
Network transmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V or PoE
Power Consumption<3W (During day); <6W (At night with IR)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Material Plastic
Dimensions (WxHxD)178*88*85.7(mm)
Weight170g
WaterproofIP67


Dimension(mm)
