JVS-N913-YWS-PE
3MP Metal Bullet PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2304x1296@25fps

• Ingress Protection IP66

• 12x IR-LED, Up to 30 Meters

• With Starlight Function

Specifications

ModelJVS-N913-YWS-PE
Video
Image Sensor1/ 2.9” CMOS
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265 / H.264
Maximum Frame Rate2304x1296@25fps
SNR(dB)52dB
Bit Rate 256Kbps~8Mbps
Illumination0Lux (IR ON)
Lens
Lens4mm
Viewing AngleH: 78.5°, V: 42.8°, D:92.6°
IR-LEDs14µ x 12 LEDs
IR-DistanceUp to 30 Meters
Function
Motion DetectionSupport
Email AlertSupport
Day& NightSupport
RecordingSupport (NVR, Windows PC, Smartphone)
DHCPSupport
FTPNot Supported
Pan/TiltNot Supported
SD-CardNot Supported
Privacy MaskSupport up to 8 areas
Exposure ControlSupport
Image AdjustmentSupport
Auto. White BalanceSupport
Image RotationSupport (Mirror/Flip)
Network
Ethernet10M/100M Ethernet, RJ45 Port
ProtocolsHTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream2x Streams
Wi-FiNot Supported
LANSupport
ONVIFONVIF 2.4
UserUp to 13 Users
BrowserIE8+, Chrome18+ ~ 42-
Smart PhoneiOS/Android
General
Dimensions(W*H*D)215x100x105mm
Weights≤480g
MaterialMetal
Working Temperature-20°C~60°C
HumidityRH 10%~90%
Power SupplyDC12V, PoE
ConsumptionDay ≦3W Night ≦ 6W
WaterproofIP66

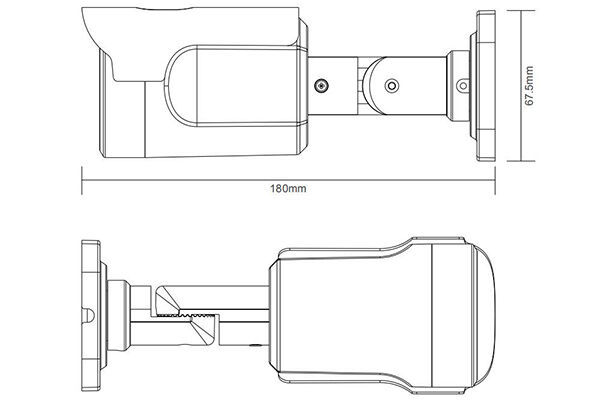

Dimensions (mm)
